MODEL

MC110D2 | MC110D4

Nominal Impedance (Z)

1.8 ohms | 3.2 ohms

DC Resistance (Re)

3.6 ohms | 6.4 ohms

Resonance Frequency (Fs)

43.7395 Hz | 43.7435 Hz

Piston Area (Sd)

0.0314 m2 | 0.0314 m2

Force Factor (BL)

14.8731 T.m | 19.2512 T.m

Mechanical Q Factor (Qms)

7.6154 | 5.9288

Electrical Q Factor (Qes)

0.7363 | 0.6384

Total Q Factor (Qts)

0.6714 | 0.5763

Sensitivity 1W/M (SPL)

83.025 | 84.5229

Mechanical Compliance (Cms)

0.0804 mm/N | 0.0984 mm/N

Moving Mass (Mms)

164.6326 g | 134.5042 g

Linear Excursion (Xmax)

13 mm

Volume Acoustic

11.0835 Ltr | 13.5637 Ltr

Compliance (Vas)

0.391 cu ft | 0.479 Cu ft

Reference Efficiency (NO.)

0.12% | 0.17%

Nominal Power (Pe)

700 Watts

Peak Power

1200 Watts

Frequency Response

20-200 Hz

Voice Coil Diameter

2.5 in/63.5 mm

Displacement

0.0626 cu ft/ 1.771 Ltr

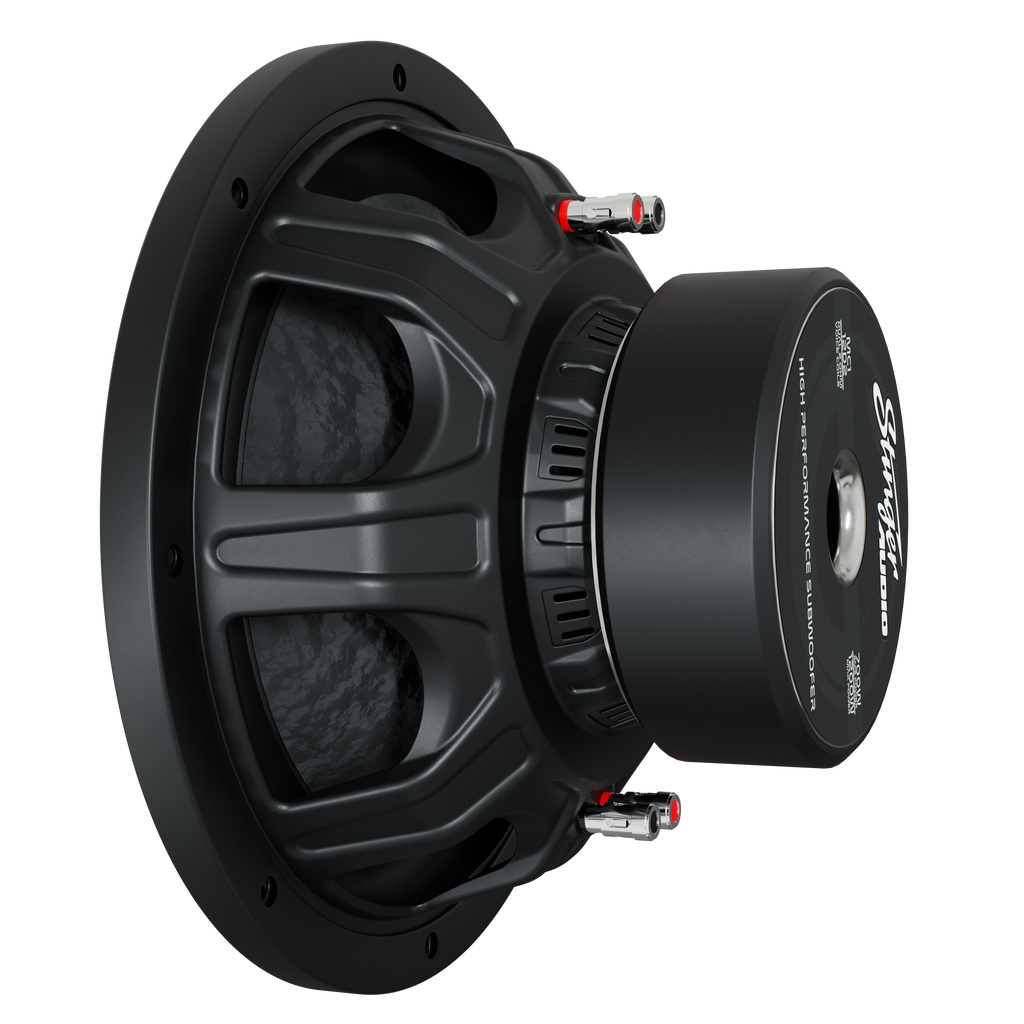

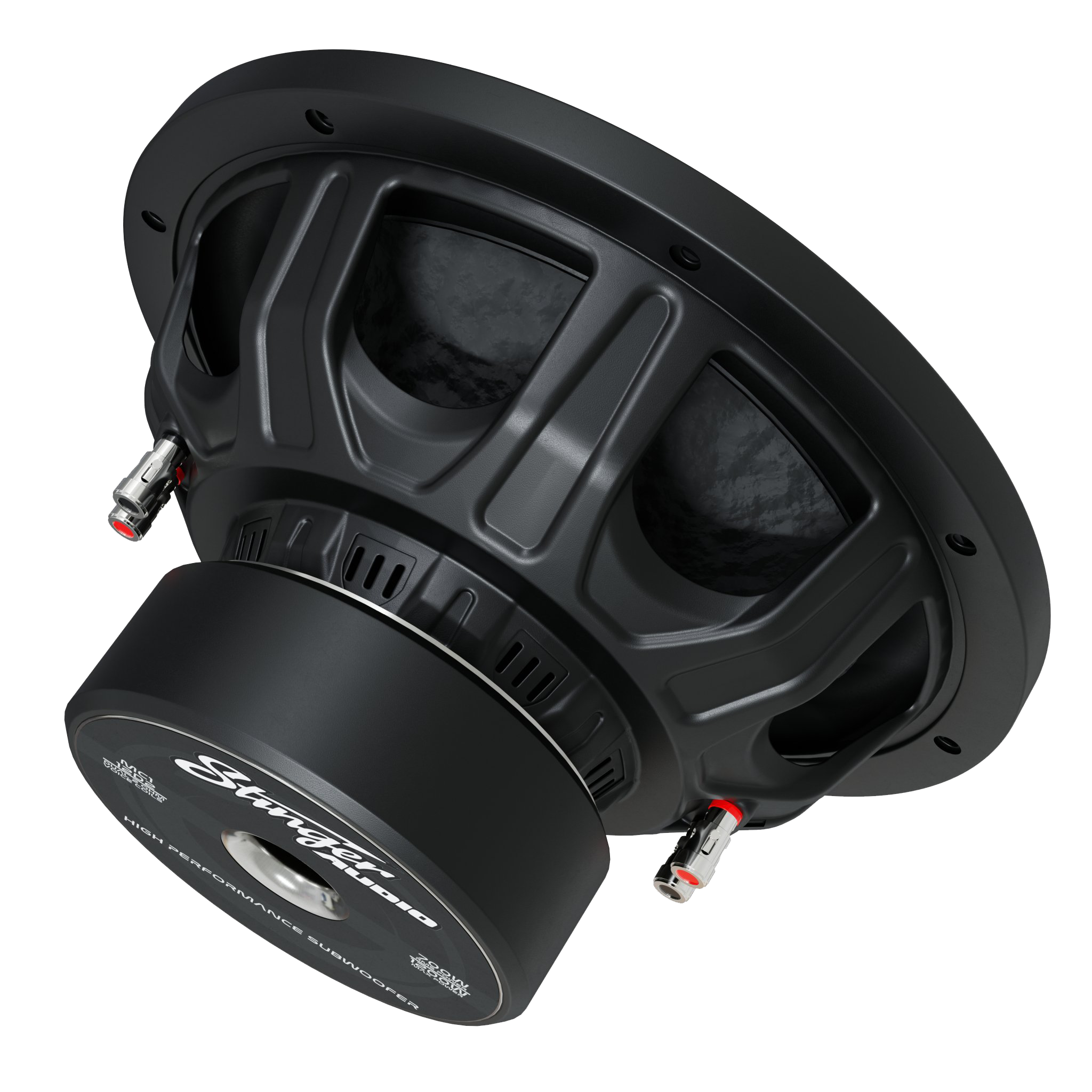

• 10" MC Series 700 Watt (RMS) 2-OHM or 4-OHM Subwoofer
• User Guide
