GENERAL

• Plug-and-Play: No
• Mounting Design: Single Din
• Recording Resolution: 1024 x 600
• Screen Size: 10"
• Manufacturer's Warranty: 1 year
• Operating Voltage: 9.0VDC to 18VDC
• Grounding system: Negative Ground
• Max Current Consumption: 10A fused

DIMENSIONS

• Radio Module: 178 mm x100 mm x 116 mm (W x H x D)

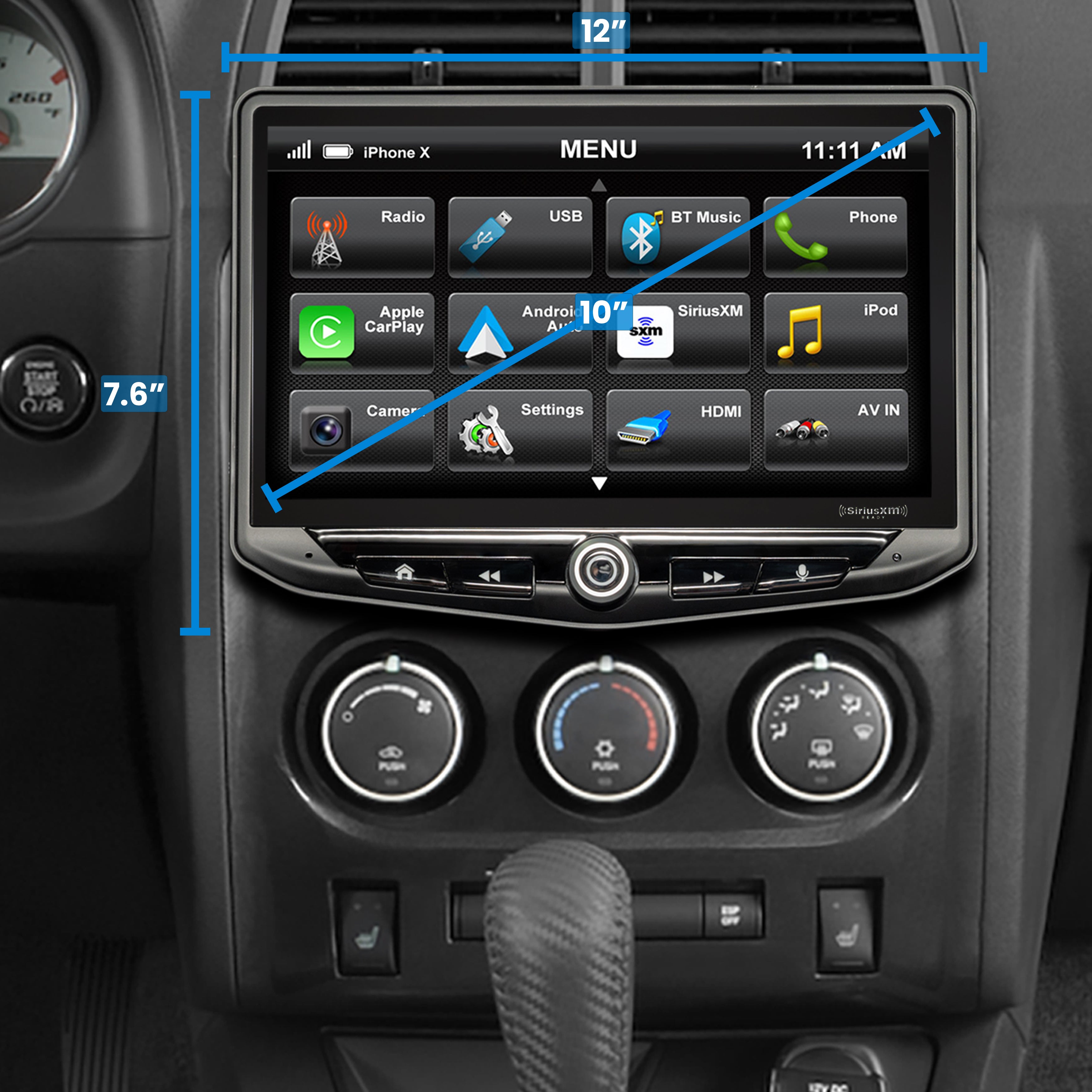

• Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)

DISPLAY

• Diagonal: 10 inch
• Aspect Ratio: 16:9
• Resolution: 1024 x 600
• Pixels: 1,843,200
• Active Area: 222.72 (W) x 125.28 (H) mm
• Operating Temperature: (C) -20º to 70º

AUDIO

• Load Impedance: 4Ω nominal / 2Ω allowable
• Continuous Power Output: 25W x 4ch/4Ω 20Hz to 20KHz, 1%THD at 14.4V
• Audio output level (max): 4.0V pre-out
• EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/10KHz/16KHz
• Gain: 12dB (2dB/step)
• HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
• Slope: 6dB, 12dB, 18dB
• Subwoofer Preout LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
• Slope: 6dB, 12dB, 18dB
• Gain: -14dB to 7dB (1dB/step)
• Phase: 0 or 180
• Speaker Level: 9dB (1dB/step)
• Time Alignment: 0 to 133 step (inch/ms)

FM TUNER

• 87.9MHz to 107.9MHz
• Usable sensitive 0dB (mono S/N: 30dB)
• SNR 65dB

AM TUNER

• 530KHz to 1710KHz
• Usable sensitive 0dB (mono S/N:20dB)
• SNR 58dB

USB

• Type: USB 2.0
• Max Current Supply: 1.5A
• USB Class: MSC (Mass Storage Class) / MTP (Media Transfer Protocol)
• File System: FAT32, NTFS

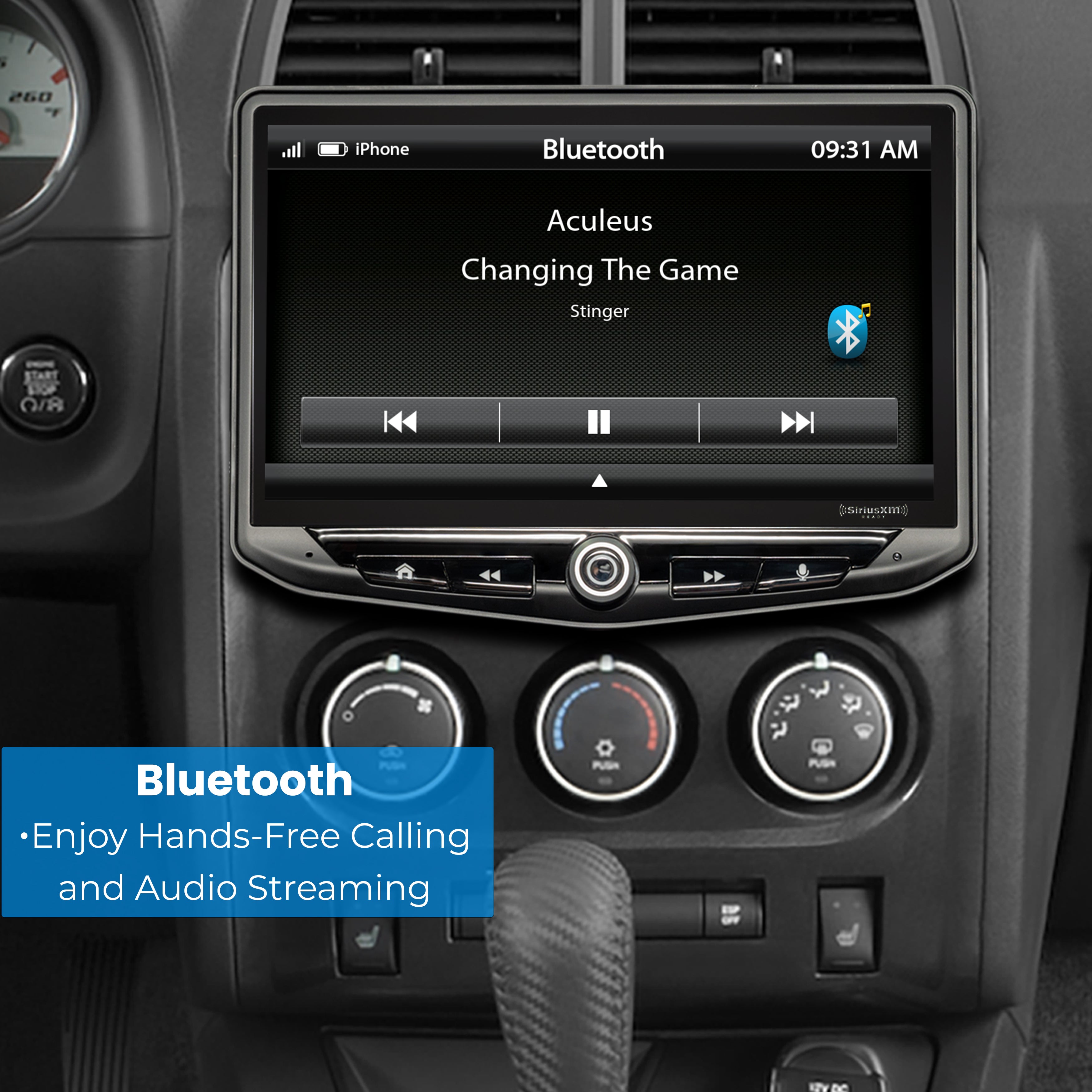

BLUETOOTH

• V4.2 dual
• 4dBm Class2
• 2.4GHz to 2.48GHz

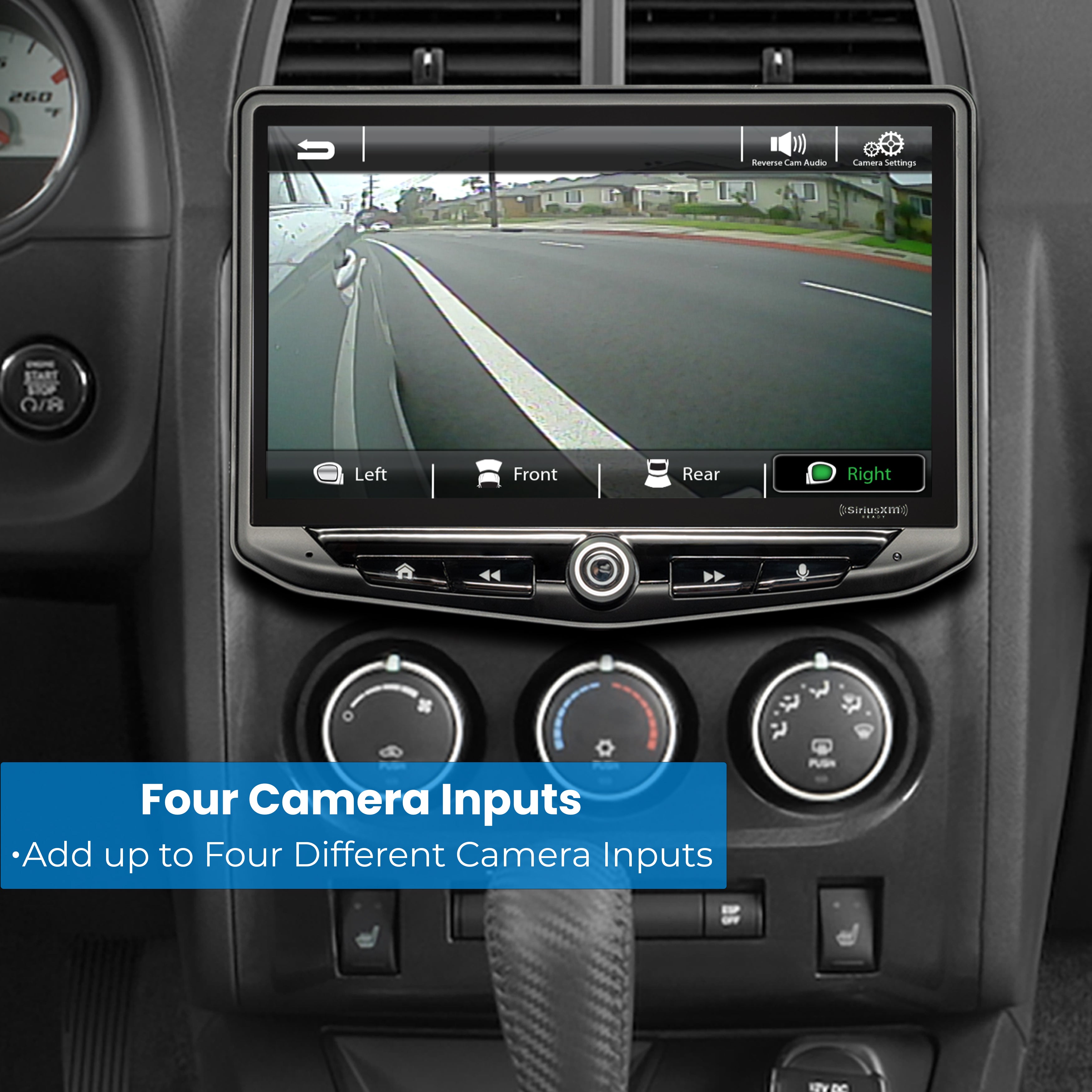

CAMERA(S)/VIDEO INPUTS

• NTSC OR PAL video formats

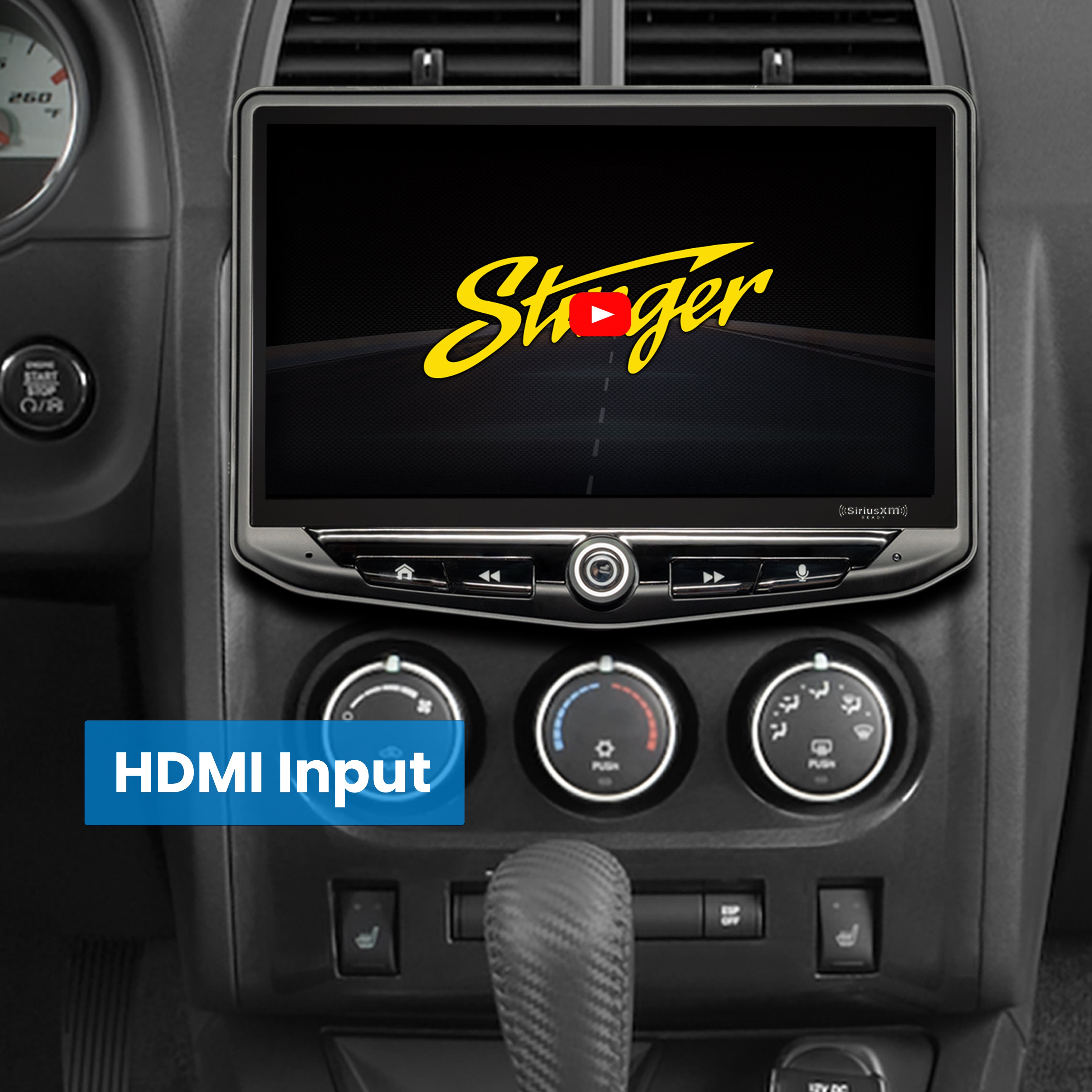

HDMI INPUT

• Supported HDMI Resolutions:
• 640*480p
• 720*480p
• 1280*720p
• 1920*1080i
• 1920*1080p

TOSLINK (OPTICAL)

• Output: 48khz Variable

BACKGROUND IMAGE (USER)

• File Format: JPG / PNG
• Resolution: 1024 x 600 (File size is not limited)

AUDIO/VIDEO FORMATS

• MPEG-1 Audio Layer-3 (.mp3)
• FLAC (.flac)
• MPEG-2 Advanced Audio (.aac)
• MPEG-4 Audio (.m4a)
• Windows Audio (.wav)
• OGG Audio (.ogg)

VIDEO

• QuickTime (.mov)
• MPEG-4 Video (.mp4)
• Microsoft AVI (.avi)
• MPG Video (.mpg)
• MPEG Video 1/2 (.mpeg)
• VOB DVD (.vob)
• Flash Video (.flv)


• JPEG (.jpg)
• CompuServe GIF (.gif)
• PNG (.png)
• JPEG (.jpeg)
• Bitmap(.bmp)

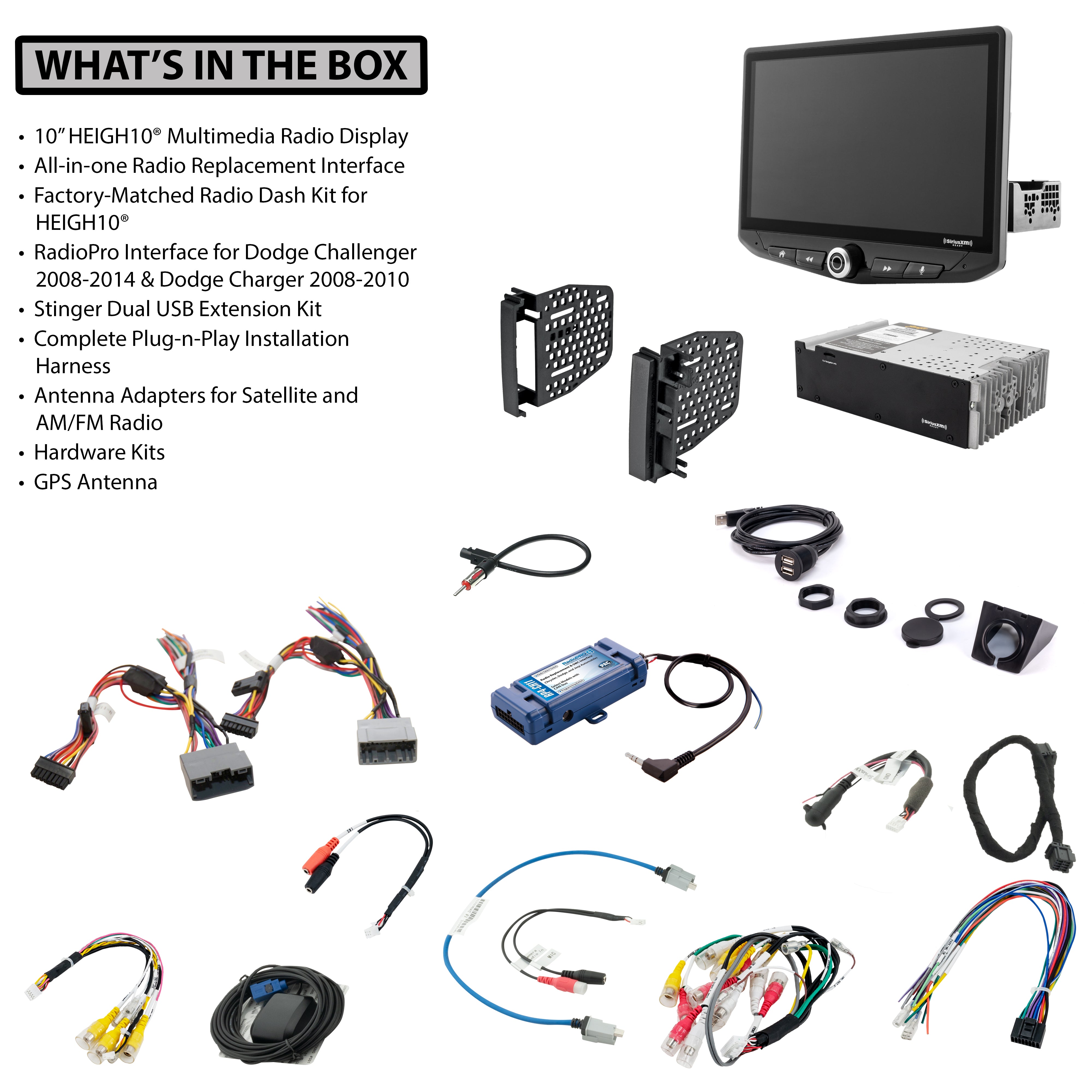

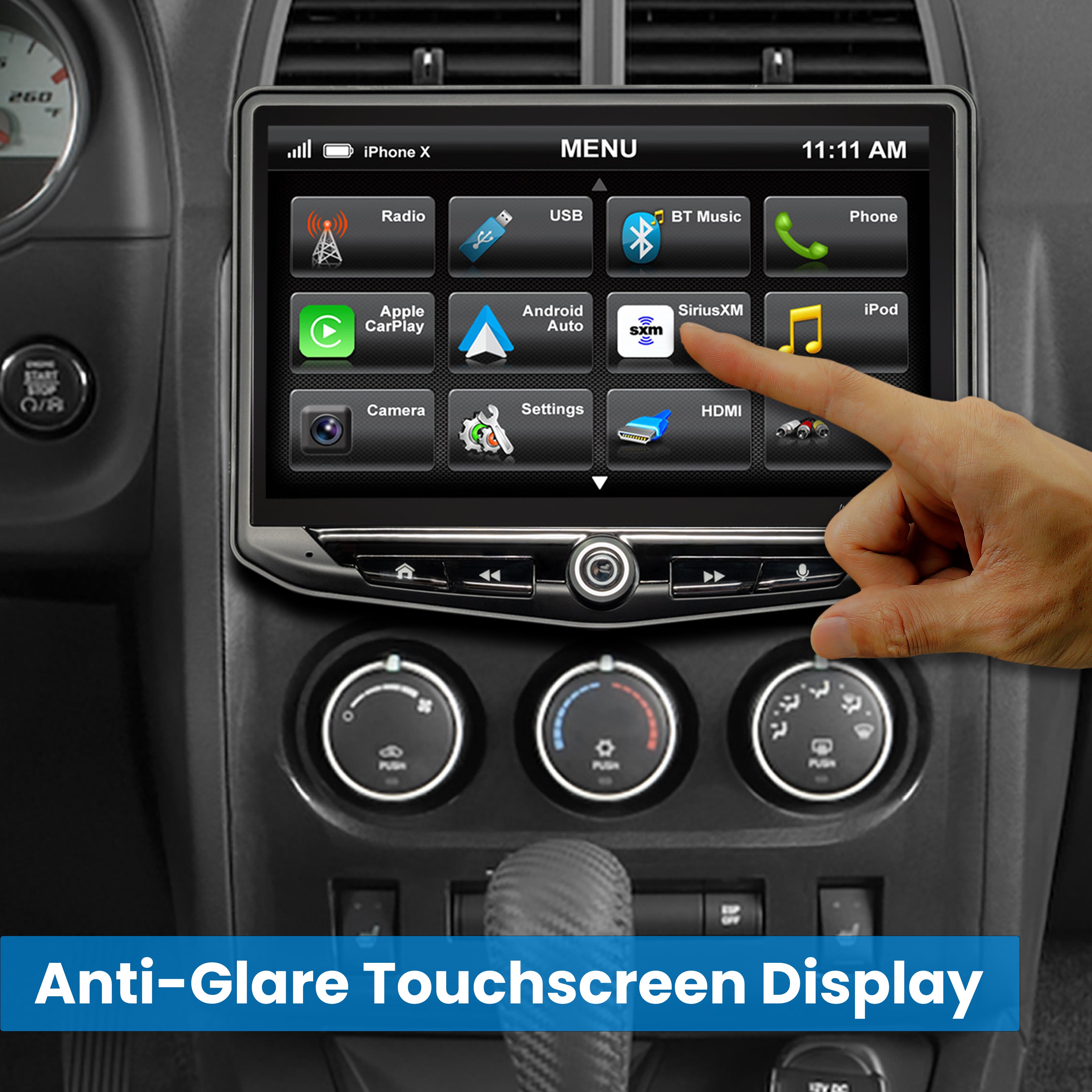

• 10-inch touchscreen display and infotainment system
• RadioPro Interface for Dodge Challenger (2008-2014) & Dodge Charger (2008-2010)Does not retain Uconnect
• Dodge Challenger & Dodge Charger radio dash kit (CDK642)

• Antenna adapters for AM/FM radio
• GPS antenna
• Hardware kits
• Stinger dual USB extension/port
• User Guide

We have a 30-day easy return policy for all purchases.

We provide a shipping label for defective products upon your return request at no cost. Non-defective products will not receive a shipping label and the consumer will be responsible for all shipping costs.

Stinger products are warrantied against defects in materials One (1) Year from purchase date. Stinger will, at its discretion, replace any products that exhibit defects in materials and/or workmanship during the warranty period. Assessments of defective parts are performed before replacements are shipped or refunds are released.

Please hold on to your order confirmation! All warranty service requires original sales receipt documentation with Order Number. The warranty only applies to the original purchaser.

Note: Products purchased from unauthorized dealers are not covered under warranty.

Warranty Limitations
Units found to have physical or liquid damage caused by use abuse or improper installation may be void of warranty.

Stay up-to-date with the latest firmware for your HEIGH10! Get the newest features, enhancements, and performance improvements.

Version 6-24-2024

This Firmware Update will only work on newer UN1810 models X revision

This can be verified 2 ways:

1. In the UN1810 SYSTEM INFORMATION screen

Skytraq must be listed as the latest version. If Ublox is listed, you have an older version; this Firmware update will not work (see Legacy Firmware below)

If you have PAC APK V16, then you have the most current Firmware and does not need an update.

OR

2. You can also verify the version by the Revision number on the radio chassis. If it ends in, this Firmware is compatible. If there is no X at the end, you have an older version and this Firmware update will not work (see Legacy Firmware Below).

Release Notes:

• Adds SRK-GM14HX Compatibility

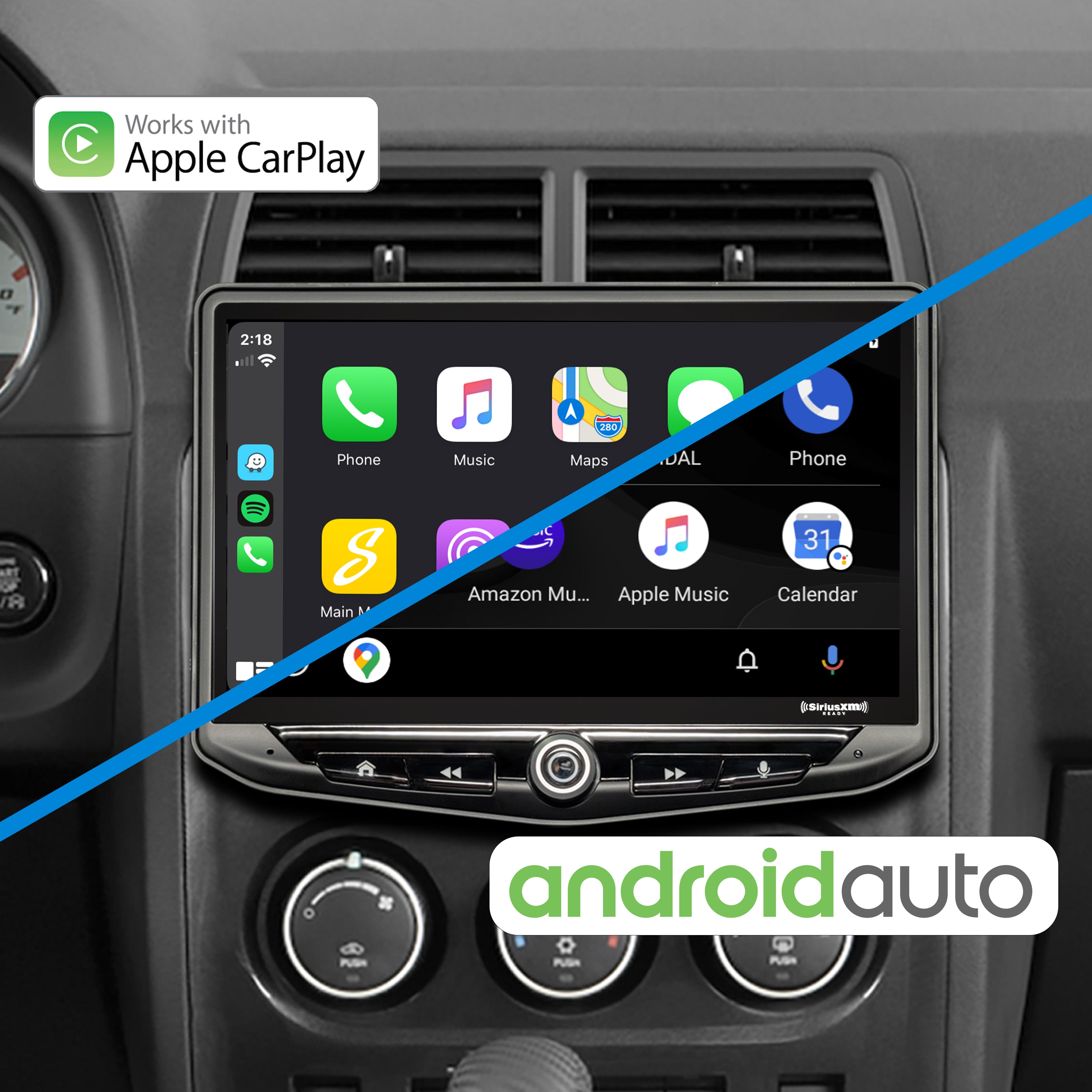

• Improves CarPlay Functionality
• Improves Pitch and Roll Functionality
• Improves camera functionality

Legacy Firmware

Version 1-11-2023

Click Here To Download HEIGH10 (UN1810) Firmware

Release Notes:

• Adds AHD Camera compatibility (UN1810 HW REV 2.1.6.2 and higher)
• Adds onscreen RGB Light Control for Stinger ENLIGHT10 products.

2008-2014 DODGE CHALLENGER ALL TRIM LEVELS

2008-2010 DODGE CHARGER ALL TRIM LEVELS

2011-2014 CHRYSLER 200 ALL TRIM LEVELS

2008-2010 CHRYSLER 300ALL TRIM LEVELS

2007-2014 DODGE AVENGER ALL TRIM LEVELS
