Subwoofer Specifications
Model Number TXFBB12
Speaker Model SPC-12S2
Subwoofer Size 12”
Voice Coil Single 2 ohm
DC Resistance (Re) 2 ohm
Sensitivity 1W/M (SPL) 87 dB
Frequency Response 20Hz - 250Hz
RMS Power Min 200w - Ideal 400w - Max 600w
Speaker Displacement 0.06 cu ft / 1.82 Ltr
Speaker Weight 12.5 lbs

Enclosure Specifications
Internal Volume 0.706 cu ft. / 19.99 Ltr
Enclosure Weight 16.25 lbs

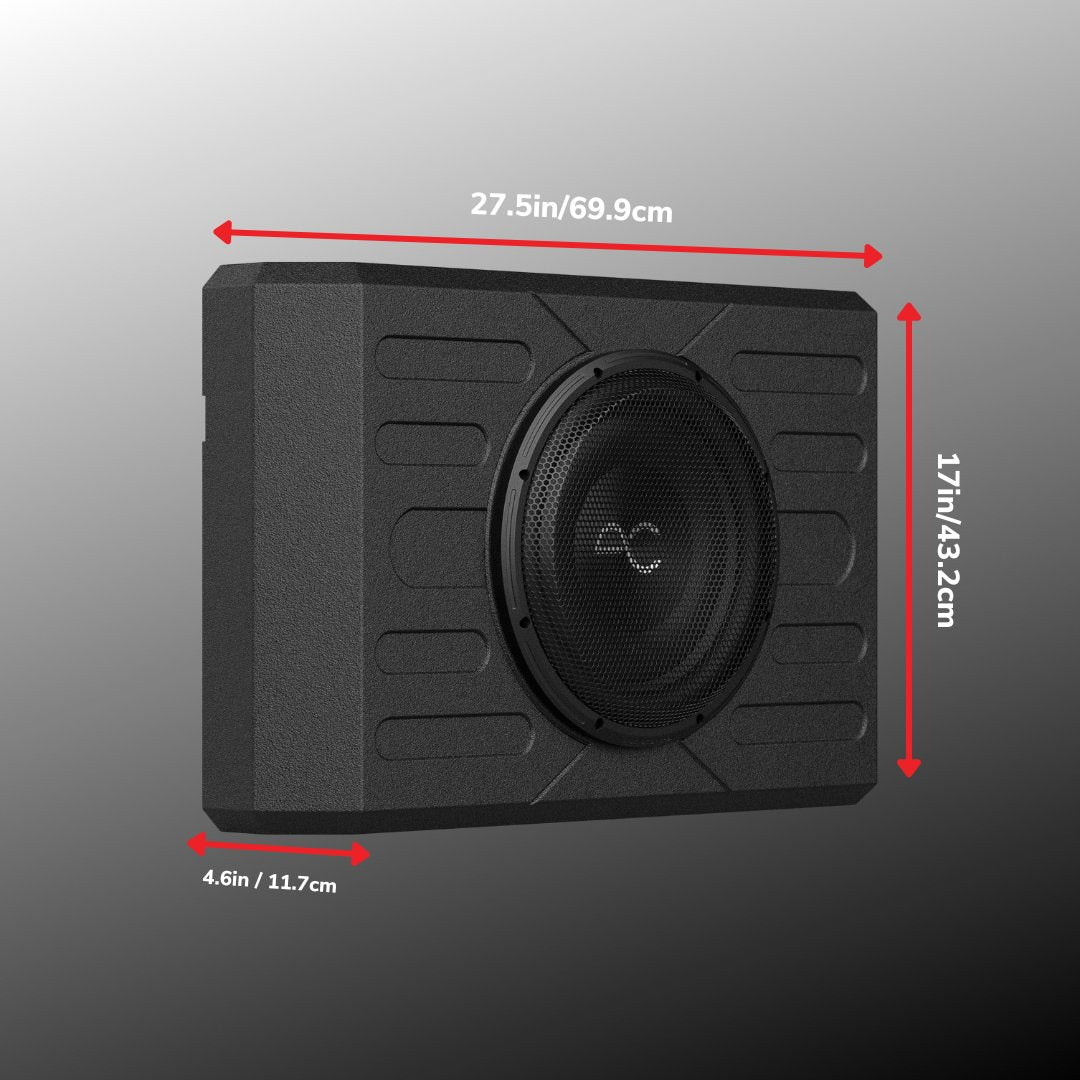

Height 17in / 43.2cm
Width 27.5in / 69.9cm
Depth 4.6in / 11.7cm
Depth (with Speaker & Grill) 5.8in / 14.7cm

• 12" Loaded Subwoofer Enclosure (Comes Assembled)
• Mounting Hardware
• Installation Guide
• Printable Template
• Printing Instructions

We have a 30-day easy return policy for all purchases.

We provide a shipping label for defective products upon your return request at no cost. Non-defective products will not receive a shipping label and the consumer will be responsible for all shipping costs.

Stinger products are warrantied against defects in materials One (1) Year from purchase date. Stinger will, at its discretion, replace any products that exhibit defects in materials and/or workmanship during the warranty period. Assessments of defective parts are performed before replacements are shipped or refunds are released.

Please hold on to your order confirmation! All warranty service requires original sales receipt documentation with Order Number. The warranty only applies to the original purchaser.

Note: Products purchased from unauthorized dealers are not covered under warranty.

Warranty Limitations
Units found to have physical or liquid damage caused by use abuse or improper installation may be void of warranty.

2021-2025 FORD BRONCO
ALL TRIM LEVELS
