SKU: STH10JK

HEIGH10 Jeep Wrangler JK (2007-2018) 10" Radio Kit

4.7 (43)

$699.00

$799.00

13% off
HEIGH10 Jeep Wrangler JK (2007-2018) 10" Radio Kit
HEIGH10 Jeep Wrangler JK (2007-2018) 10" Radio Kit

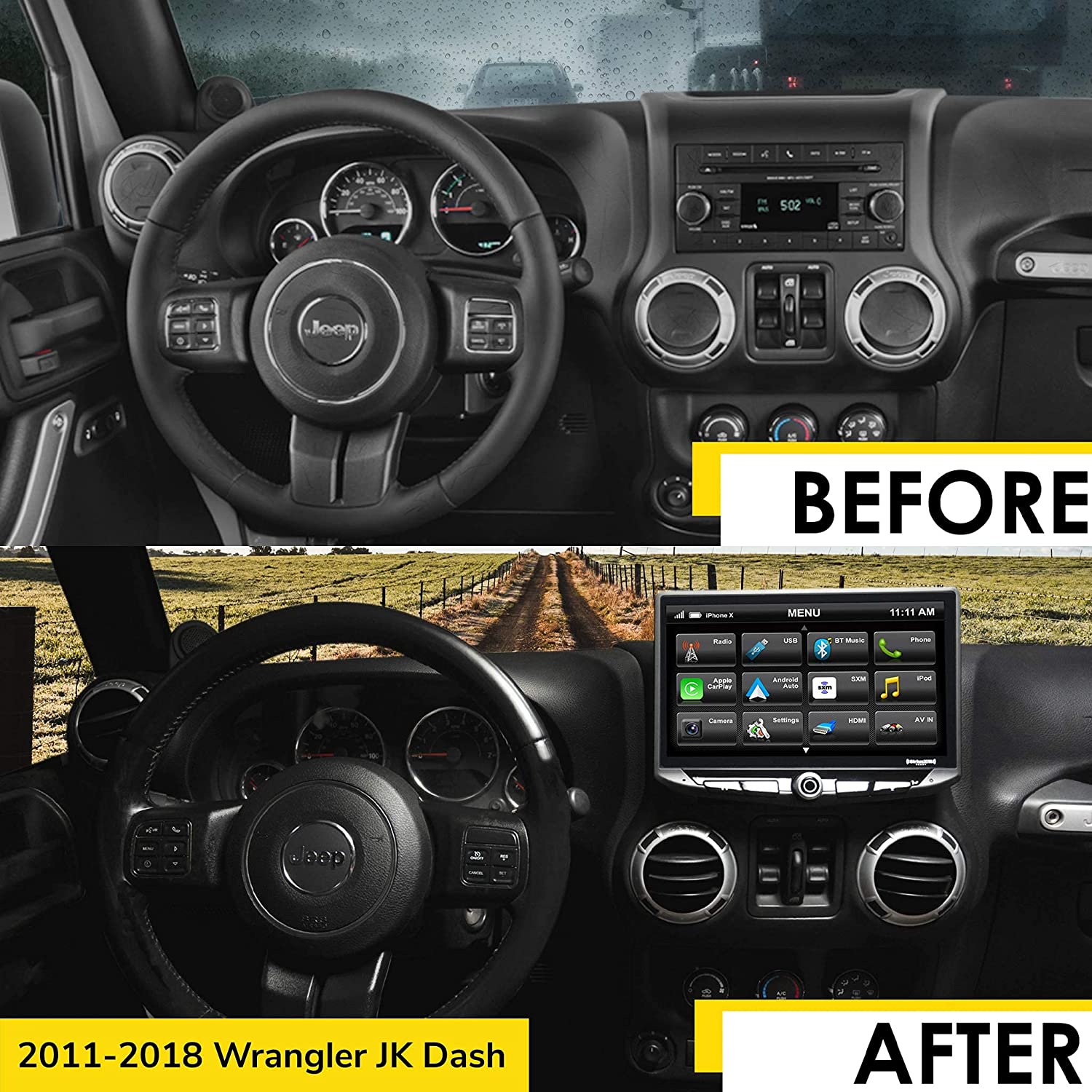

Jeep Wrangler JK before and after for Stinger HEIGH10 Radio
Jeep Wrangler JK floating display for Stinger HEIGH10 Radio Kit

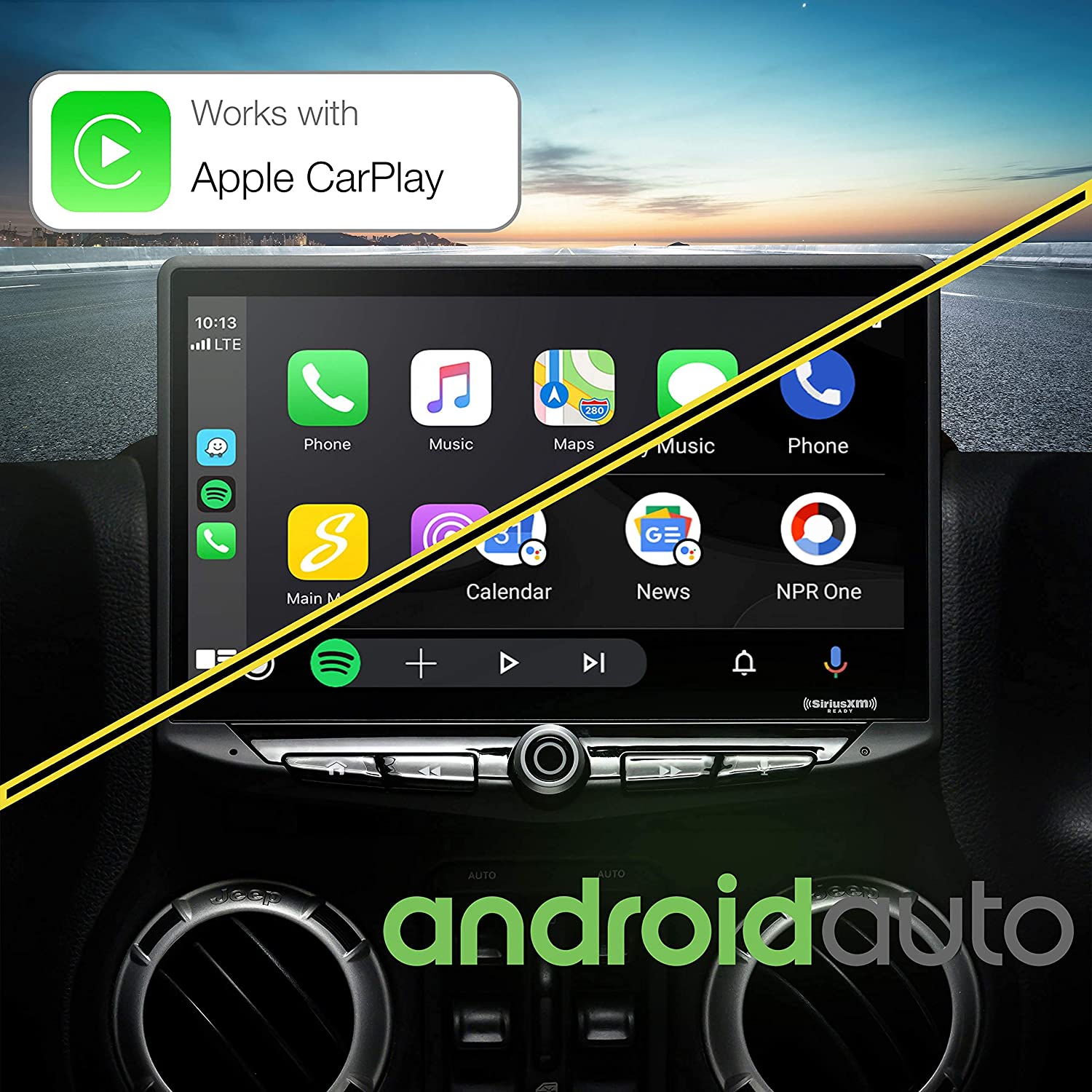

Jeep Wrangler JK Apple CarPlay & Android Autofor Stinger HEIGH10 Radio

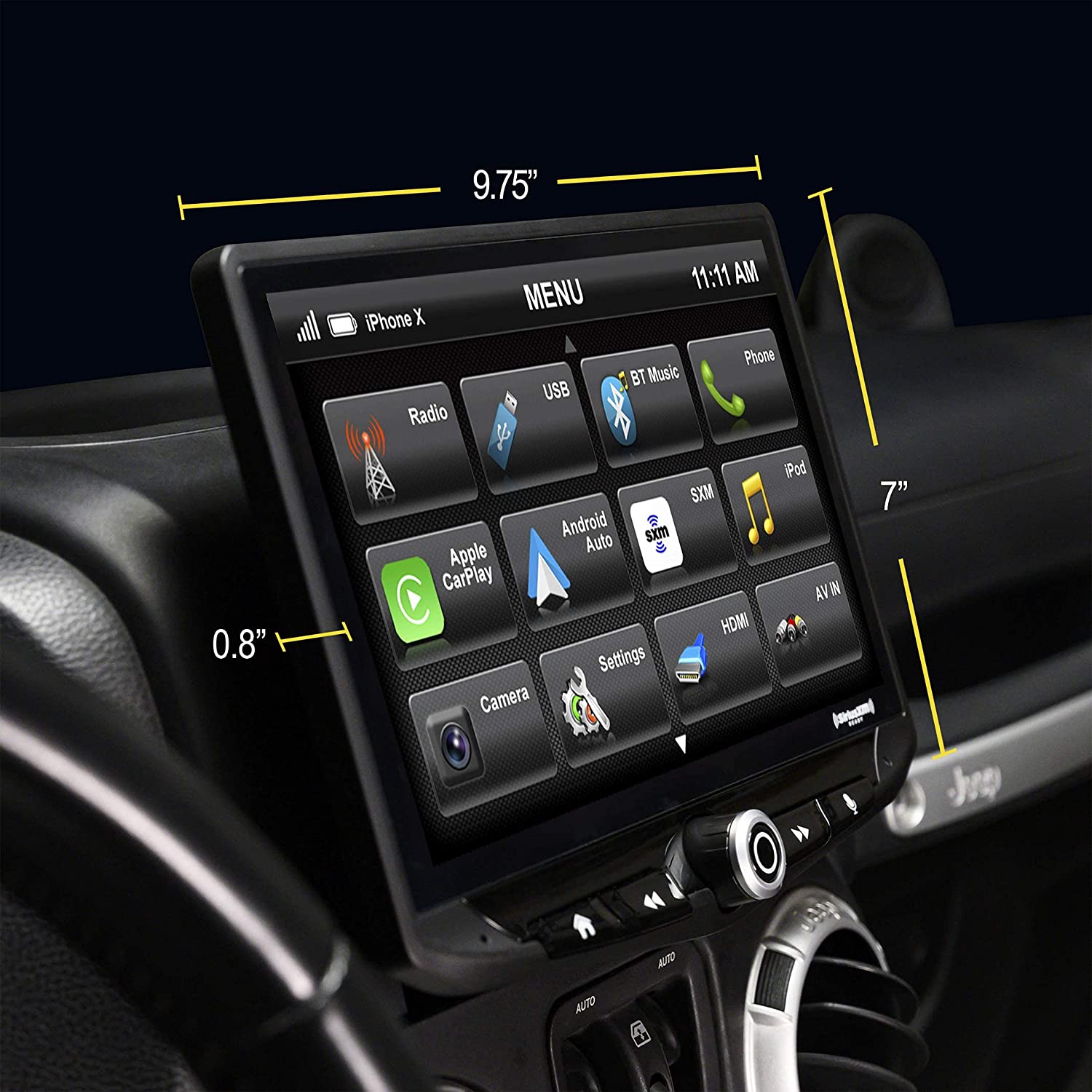

Jeep Wrangler JK floating display for Stinger HEIGH10 Radio Sizes 0.8"W x 9.75" L x 7"H

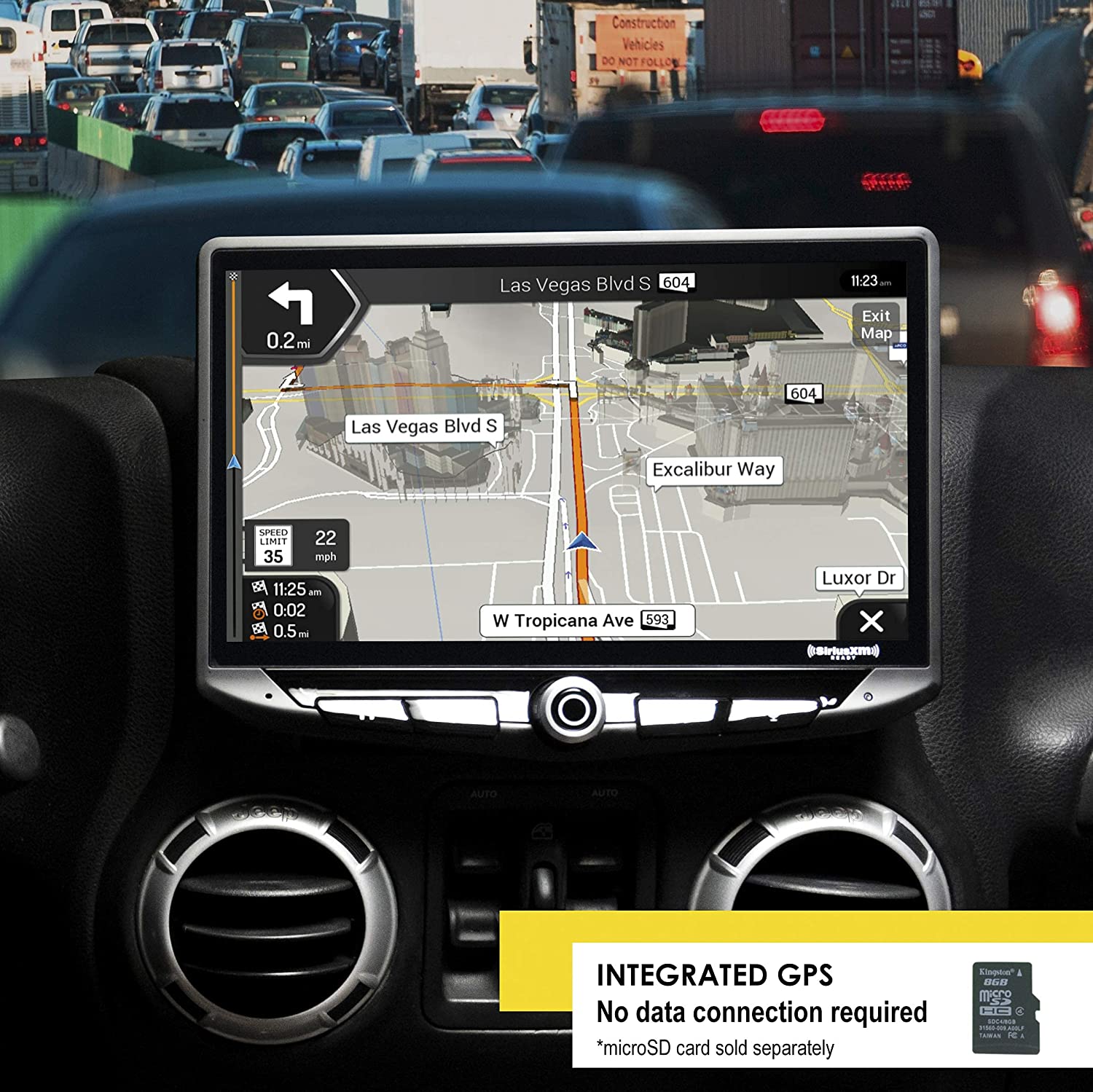

Jeep Wrangler JK GPS navigation screen for Stinger HEIGH10 Radio

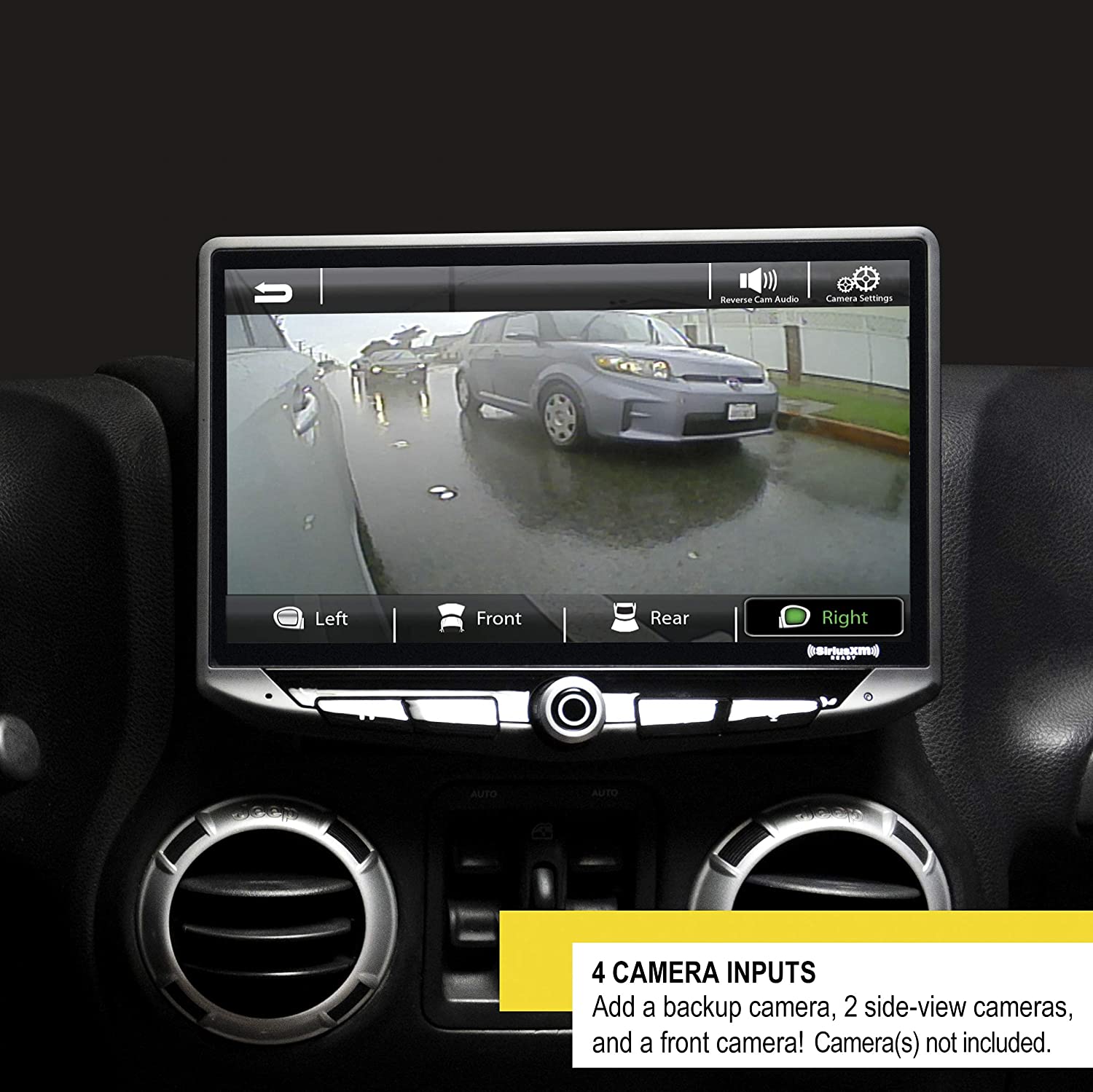

Jeep Wrangler JK backup camera display for Stinger HEIGH10 Radio

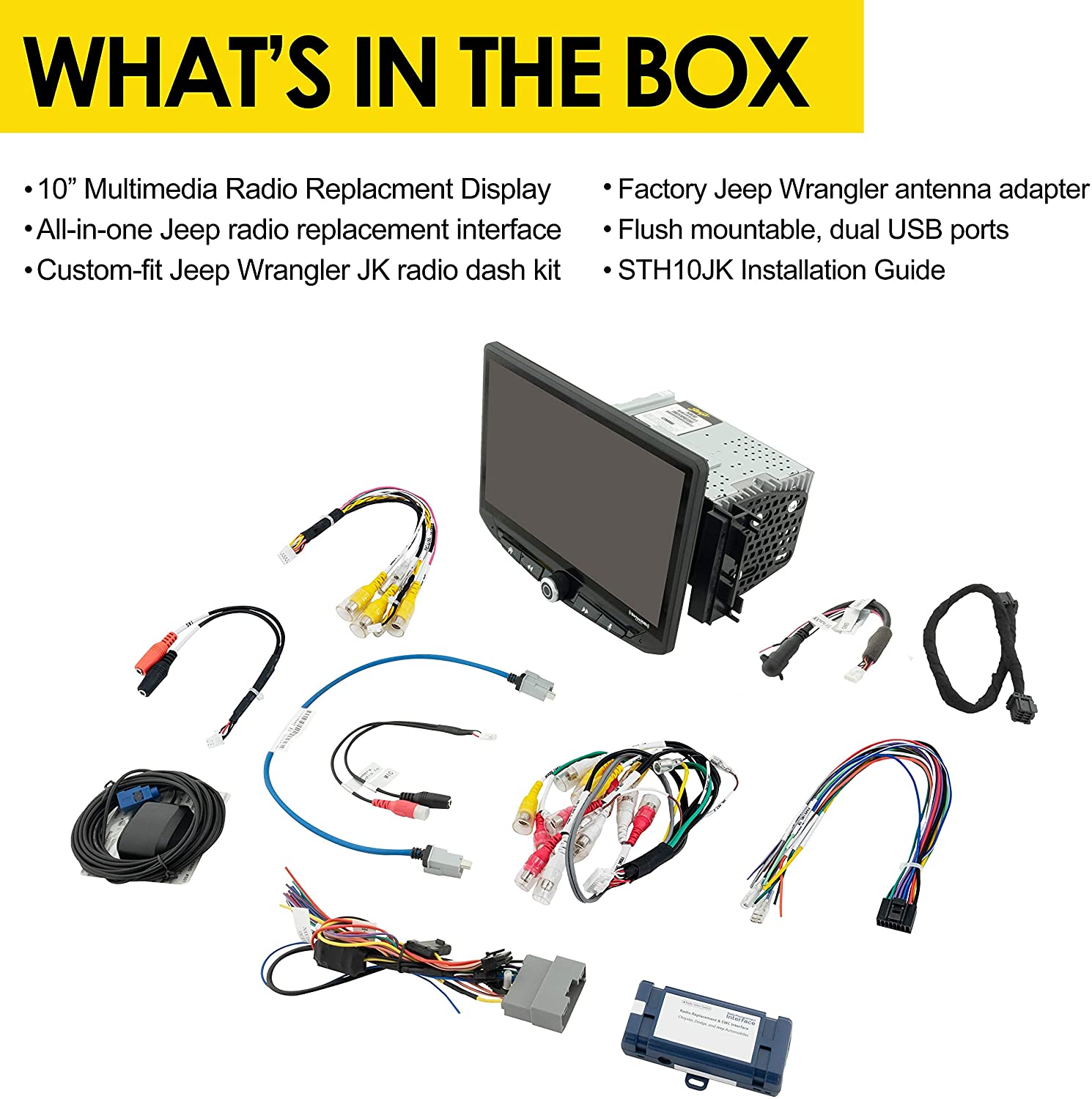

What's in the box image of items included. (List located on product page)
https://youtu.be/DHKDGjWM02E
https://youtu.be/t5vCifTDj_I

Does it fit your car?

Need help installing?

Find an installer

Wired CarPlay & Android Auto
4 Camera Input
15-Band Adjustable EQ
Hands-Free Bluetooth

Specifications

What's In The Box?

Warranty Information

Firmware Updates

Fitment Guide

GENERAL

  • Plug-and-Play: No
  • Mounting Design: Single Din
  • Recording Resolution: 1024 x 600
  • Screen Size: 10"
  • Manufacturer's Warranty: 1 year
  • Operating Voltage: 9.0VDC to 18VDC
  • Grounding system: Negative Ground
  • Max Current Consumption: 10A fused

DIMENSIONS

  • Radio Module: 178 mm x100 mm x 116 mm (W x H x D)
  • Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)

DISPLAY

  • Diagonal: 10 inch
  • Aspect Ratio: 16:9
  • Resolution: 1024 x 600
  • Pixels: 1,843,200
  • Active Area: 222.72 (W) x 125.28 (H) mm
  • Operating Temperature: (C) -20º to 70º

AUDIO

  • Load Impedance: 4Ω nominal / 2Ω allowable
  • Continuous Power Output: 25W x 4ch/4Ω 20Hz to 20KHz, 1%THD at 14.4V
  • Audio output level (max): 4.0V pre-out
  • EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/10KHz/16KHz
  • Gain: 12dB (2dB/step)
  • HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
  • Slope: 6dB, 12dB, 18dB
  • Subwoofer Preout LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
  • Slope: 6dB, 12dB, 18dB
  • Gain: -14dB to 7dB (1dB/step)
  • Phase: 0 or 180
  • Speaker Level: 9dB (1dB/step)
  • Time Alignment: 0 to 133 step (inch/ms)

FM TUNER

  • 87.9MHz to 107.9MHz
  • Usable sensitive 0dB (mono S/N: 30dB)
  • SNR 65dB

AM TUNER

  • 530KHz to 1710KHz
  • Usable sensitive 0dB (mono S/N:20dB)
  • SNR 58dB

USB

  • Type: USB 2.0
  • Max Current Supply: 1.5A
  • USB Class: MSC (Mass Storage Class) / MTP (Media Transfer Protocol)
  • File System: FAT32, NTFS

BLUETOOTH

  • V4.2 dual
  • 4dBm Class2
  • 2.4GHz to 2.48GHz

CAMERA(S)/VIDEO INPUTS

  • NTSC OR PAL video formats

HDMI INPUT

  • Supported HDMI Resolutions:
  • 640*480p
  • 720*480p
  • 1280*720p
  • 1920*1080i
  • 1920*1080p

TOSLINK (OPTICAL)

  • Output: 48khz Variable

BACKGROUND IMAGE (USER)

  • File Format: JPG / PNG
  • Resolution: 1024 x 600 (File size is not limited)

AUDIO/VIDEO FORMATS

  • MPEG-1 Audio Layer-3 (.mp3)
  • FLAC (.flac)
  • MPEG-2 Advanced Audio (.aac)
  • MPEG-4 Audio (.m4a)
  • Windows Audio (.wav)
  • OGG Audio (.ogg)

VIDEO

  • QuickTime (.mov)
  • MPEG-4 Video (.mp4)
  • Microsoft AVI (.avi)
  • MPG Video (.mpg)
  • MPEG Video 1/2 (.mpeg)
  • VOB DVD (.vob)
  • Flash Video (.flv)


  • JPEG (.jpg)
  • CompuServe GIF (.gif)
  • PNG (.png)
  • JPEG (.jpeg)
  • Bitmap(.bmp)
  • 10-inch touchscreen display and infotainment system
  • RadioPro Interface for Jeep Wrangler JK (2007-2010)Does not retain Uconnect
  • Jeep Wrangler JK radio dash kit (CDK642)
  • Antenna adapters for AM/FM radio
  • Stinger dual USB extension/port
  • Installation Guide
  • User Guide

We have a 30-day easy return policy for all purchases.

We provide a shipping label for defective products upon your return request at no cost. Non-defective products will not receive a shipping label and the consumer will be responsible for all shipping costs.

Stinger products are warrantied against defects in materials One (1) Year from purchase date. Stinger will, at its discretion, replace any products that exhibit defects in materials and/or workmanship during the warranty period. Assessments of defective parts are performed before replacements are shipped or refunds are released.

Please hold on to your order confirmation! All warranty service requires original sales receipt documentation with Order Number. The warranty only applies to the original purchaser.

Note: Products purchased from unauthorized dealers are not covered under warranty.

Warranty Limitations
Units found to have physical or liquid damage caused by use abuse or improper installation may be void of warranty.

Stay up-to-date with the latest firmware for your HEIGH10! Get the newest features, enhancements, and performance improvements.

Version 6-24-2024

This Firmware Update will only work on newer UN1810 models X revision

This can be verified 2 ways:

1. In the UN1810 SYSTEM INFORMATION screen

Skytraq must be listed as the latest version. If Ublox is listed, you have an older version; this Firmware update will not work (see Legacy Firmware below)

If you have PAC APK V16, then you have the most current Firmware and does not need an update.

OR

2. You can also verify the version by the Revision number on the radio chassis. If it ends in, this Firmware is compatible. If there is no X at the end, you have an older version and this Firmware update will not work (see Legacy Firmware Below).

Release Notes:

  • Adds SRK-GM14HX Compatibility
  • Improves CarPlay Functionality
  • Improves Pitch and Roll Functionality
  • Improves camera functionality

Legacy Firmware

Version 1-11-2023

Click Here To Download HEIGH10 (UN1810) Firmware

Release Notes:

  • Adds AHD Camera compatibility (UN1810 HW REV 2.1.6.2 and higher)
  • Adds onscreen RGB Light Control for Stinger ENLIGHT10 products.
Download Latest Firmware

2007-2018 Jeep Wrangler JK

Engineered in the USA

Designed and tested by real enthusiasts for peak performance.

Tech Support

USA-based tech support available.

Free Shipping Over $399

Fast, free delivery on all qualifying orders.

MFi-Certified Smartphone Connectivity

Reliable Apple CarPlay or Android Auto connection.

Introducing the HEIGH10

Designed in the USA.
Built for your adventure.

Designed in the USA:
Experience the excellence of American ingenuity. Stinger products are proudly designed by our innovative engineers in the USA.

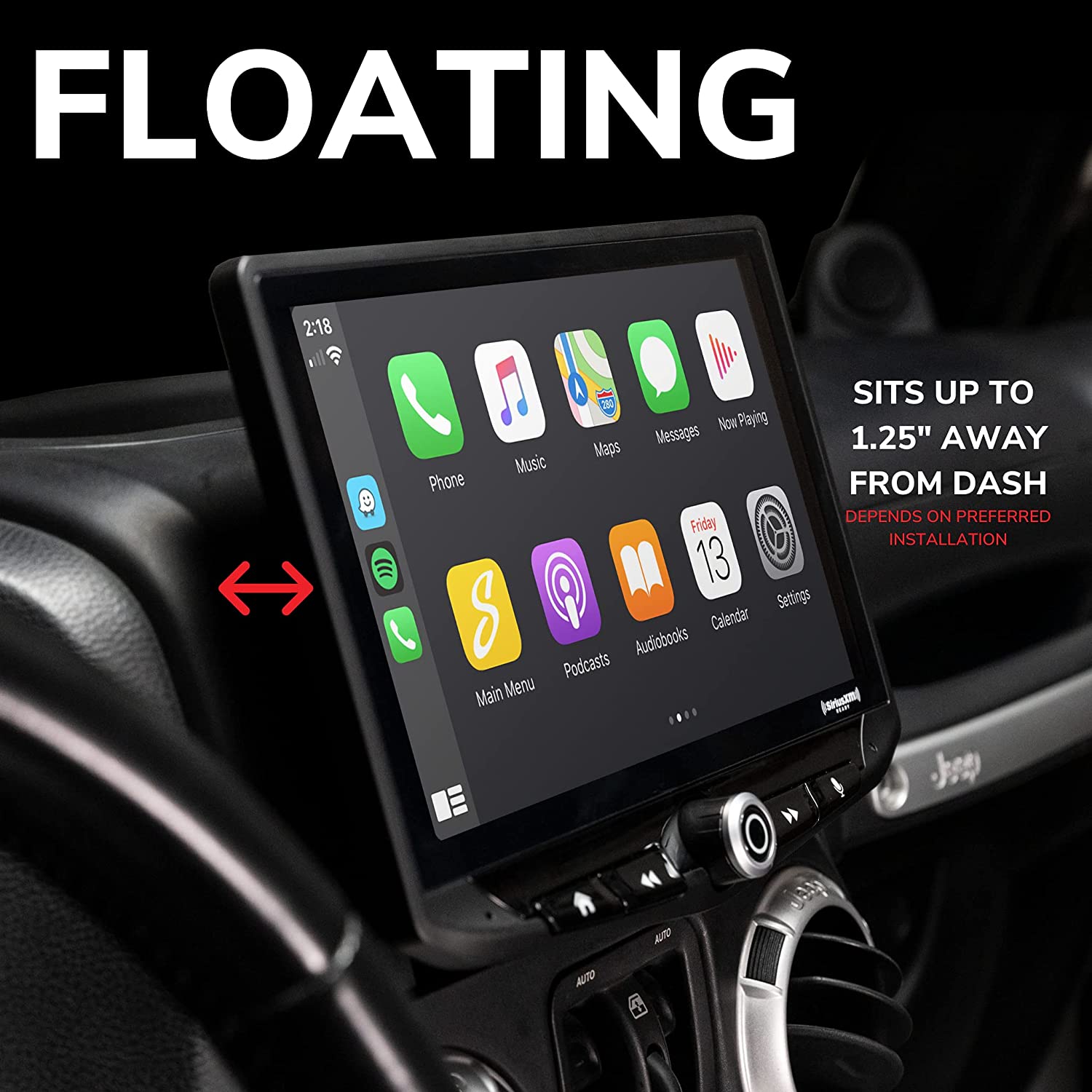

Floating Mount:
This design enhances visibility and ergonomics while adding a sleek and modern aesthetic to the vehicle's interior. The adjustable angle and height offer customizable viewing and easy access to controls.

MFi-Certified Smartphone Connection:
Compatible with Apple CarPlay and Android Auto (wired connection) to make it possible to access map navigation, phone contacts, notifications, music, and much more.

High-Resolution 10" Touchscreen:
10-inch capacitive touchscreen with 16.7 million colors for a full visual experience.

Jeep Wrangler JK floating display for Stinger HEIGH10 Radio Kit
Jeep Wrangler JK backup camera display for Stinger HEIGH10 Radio

Main features

Performance & Adventure Integration

  • 1

    Optional iGO Navigation integration offers reliable, offline maps. (SE-P14 SD Card Sold Separately)

  • 2

    (2)USB-A inputs & HDMI input

  • 3

    Allows up to 4 camera inputs via camera mode display

Jeep Wrangler JK Apple CarPlay & Android Autofor Stinger HEIGH10 Radio

Main features

Immersive Audio &
Connectivity

  • 1

    Access your phone's smart features by connecting through wired Apple CarPlay, Android Auto, and hands-free Bluetooth.

  • 2

    Enhance your soundscape with a 15-band equalizer, capable of saving up to six custom presets. 4Vrms 6-channel RCA outputs, high-power 4 x 50w peak built-in amplifier, and built-in crossover with HPF/LPF allows for an immersive audio experience.

  • 3

    Offers a vast array of music, sports, and entertainment options (SiriusXM Connect Vehicle Tuner sold separately: SXV300V1).

  • 4

    Improving safety and convenience through features like making calls, using voice navigation, and streaming audio.

Jeep Wrangler JK before and after for Stinger HEIGH10 Radio

Key specs

Every spec, every detail—crafted for power, clarity, and seamless integration

Wired CarPlay & Android Auto
4 Camera Input
15-Band Adjustable EQ
Hands-Free Bluetooth

Reviews

Frequently Asked
Questions

General

  • No.

  • No, not all factory features are retained.

  • no.

  • No, aftermarket radios have external mics as the factory ones are built to the specifications of the factory radio and are not interchangeable.

  • Yes, it is SiriusXM-Ready (separate tuner is required: SXV300V1)

Vehicle-Specific

  • Yes. It retains both the reverse camera and front camera.

  • No, you lose some hybrid settings when the factory radio is removed.

  • It is compatible with the Tazer lite only. All other aftermarket tuners are NOT compatible.

  • No, it does not retain factory Uconnect features.
