Sensor

1/4" CMOS
TV System

NTSC
Effective Pixels

648H/488V
Resolution

480TVL
Frame

30fps
DR

62db
S/N Ratio

46db
Video Output

1.0Vp-p at 75ohm
Minimum Illumination

0.1 LUX
Angle

H: 75° V: 58°
FOV

120°
Power Supply

12V(DC)
Currency Consumption

MAX:80MA
Power Supply

DC9-16V
Working Temperature

-30°C ~ +70 °C
Storage Temperature

-40°C ~ +85°C
Humidity

90%RH
IP Rating

BG-IP67
Part Number FCTP-GMHD05
Dims 12" x 12" x 8"

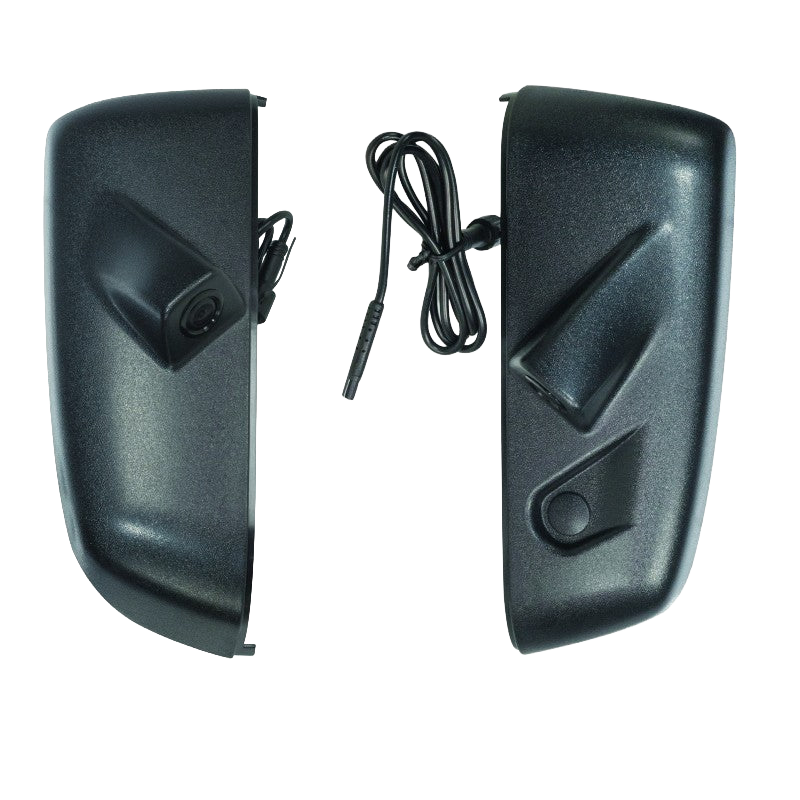

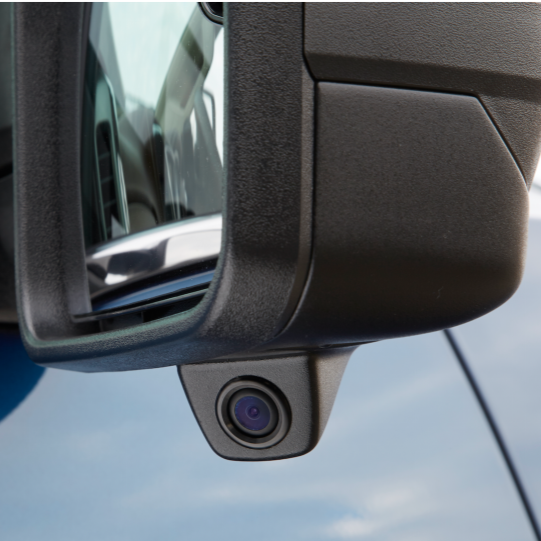

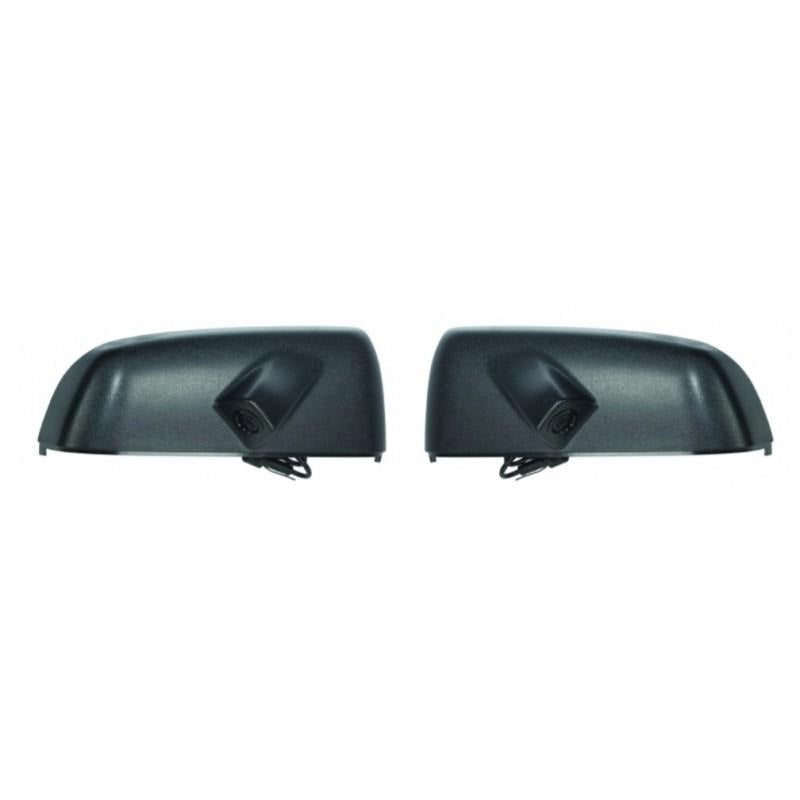

• (2) HD Side Mirror Cap Camera Mounts (L&R)
• (2)Side Cameras
• 70-Inch Camera Connection Harness
• Camera Adapter Harness

This kit does not include a camera switcher or radio integration electronics.

We have a 30-day easy return policy for all purchases.

We provide a shipping label for defective products upon your return request at no cost. Non-defective products will not receive a shipping label and the consumer will be responsible for all shipping costs.

Stinger products are warrantied against defects in materials One (1) Year from purchase date. Stinger will, at its discretion, replace any products that exhibit defects in materials and/or workmanship during the warranty period. Assessments of defective parts are performed before replacements are shipped or refunds are released.

Please hold on to your order confirmation! All warranty service requires original sales receipt documentation with Order Number. The warranty only applies to the original purchaser.

Note: Products purchased from unauthorized dealers are not covered under warranty.

Warranty Limitations
Units found to have physical or liquid damage caused by use abuse or improper installation may be void of warranty.
