Sensor Type 1/3” CMOS
LEDs 0
Illumination 0.1 LUX
Viewing Angle. 170 degrees

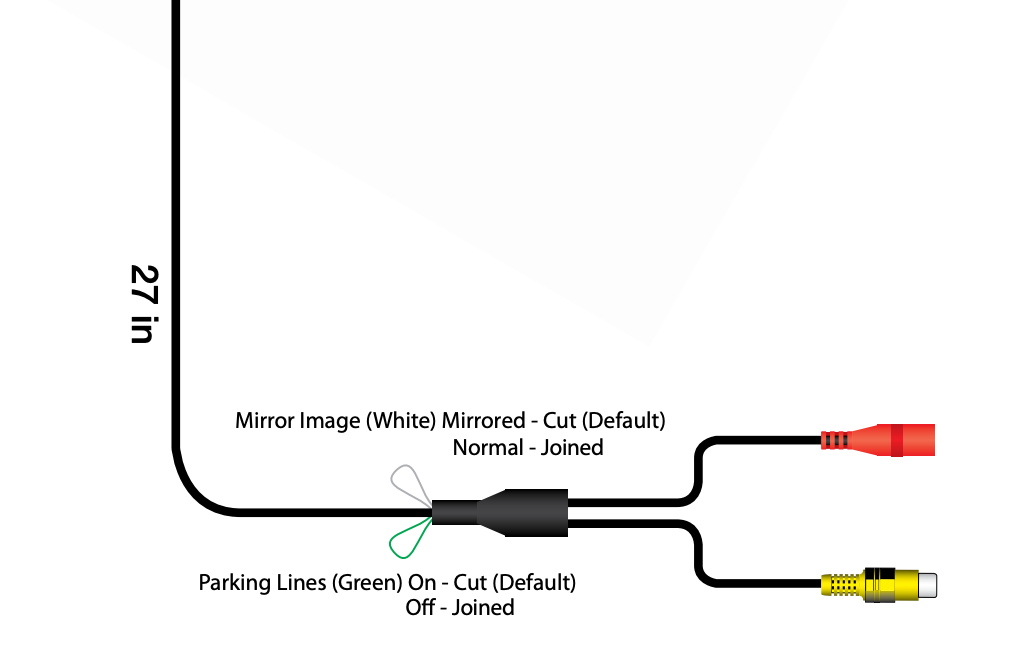

Mirror Image YES
Normal Image YES
Water/Debris-Proof IP68
Parking Lines Selectable
Audio NO
Power Supply 12V DC
Current <50mA
Working Temperature 25ºC - +65ºC
Dimensions (mm) D (41) x W (196) x H (35)
System NTSC
TV Lines 480
Part Number CAM-510L
Resolution 720 x 487

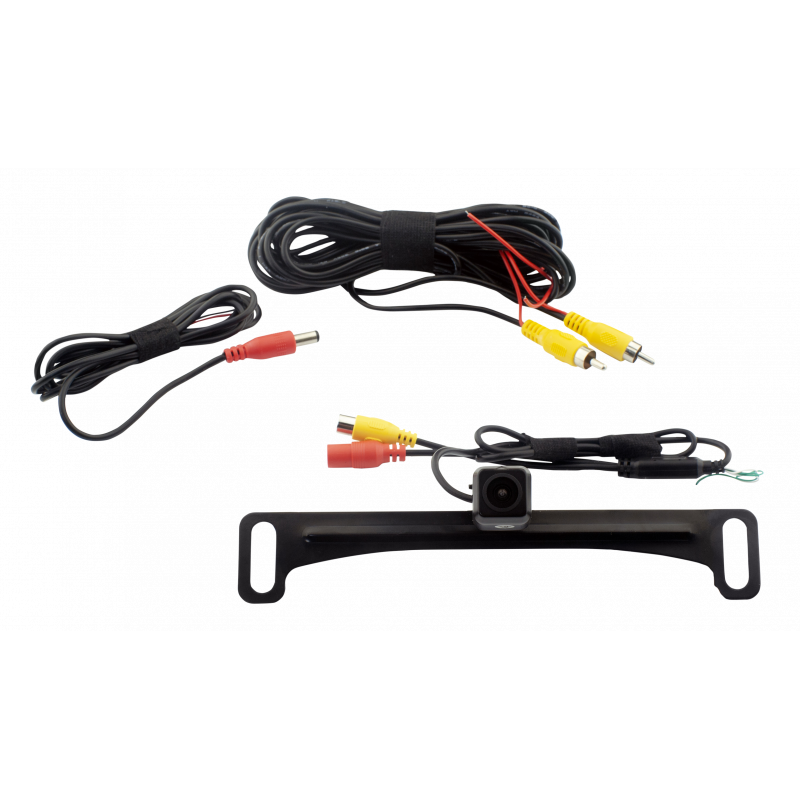

• Reverse Camera
• Installation Harness
• Power Adapter
• User Guide

We have a 30-day easy return policy for all purchases.

We provide a shipping label for defective products upon your return request at no cost. Non-defective products will not receive a shipping label and the consumer will be responsible for all shipping costs.

Stinger products are warrantied against defects in materials One (1) Year from purchase date. Stinger will, at its discretion, replace any products that exhibit defects in materials and/or workmanship during the warranty period. Assessments of defective parts are performed before replacements are shipped or refunds are released.

Please hold on to your order confirmation! All warranty service requires original sales receipt documentation with Order Number. The warranty only applies to the original purchaser.

Note: Products purchased from unauthorized dealers are not covered under warranty.

Warranty Limitations
Units found to have physical or liquid damage caused by use abuse or improper installation may be void of warranty.
