Frequency Response ± 1dB from 20Hz to 20kHz
RMS Power (14.4Vdc ≤1% THD):
125 x 4 @ 4 ohm Stereo
175 x 4 @ 2 ohm Stereo
125 x 2 @ 4 ohm Stereo +
350 x 1 @ 4 ohm Bridged
Signal to Noise Ratio >110dB
High and Low Pass Crossovers 12dB per Octave
Low Pass Crossover Range 40Hz to 400Hz
High Pass Crossover Range 40Hz to 400Hz
Input Range 200 millivolts to 12 volts
Typical Efficiency 80%
Damping Factor Greater than 200
Recommended Fuse Size 60 amp
Power/Ground Wire Size 8 Gauge

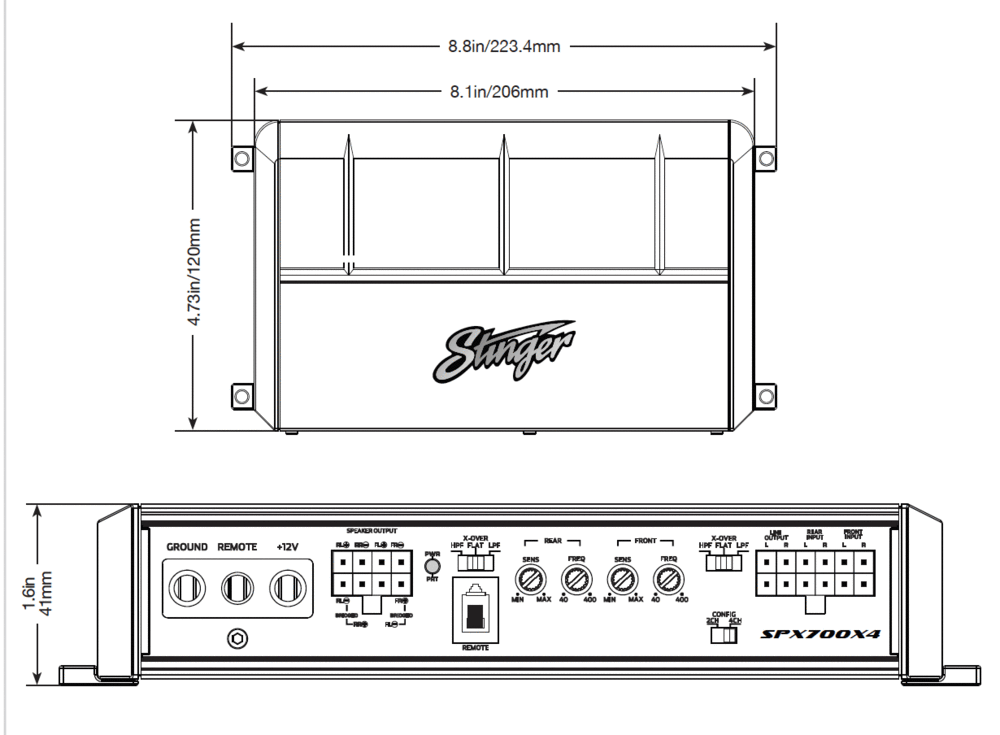

Dimensions 8.5" L x 5.11" W x 1.6" H

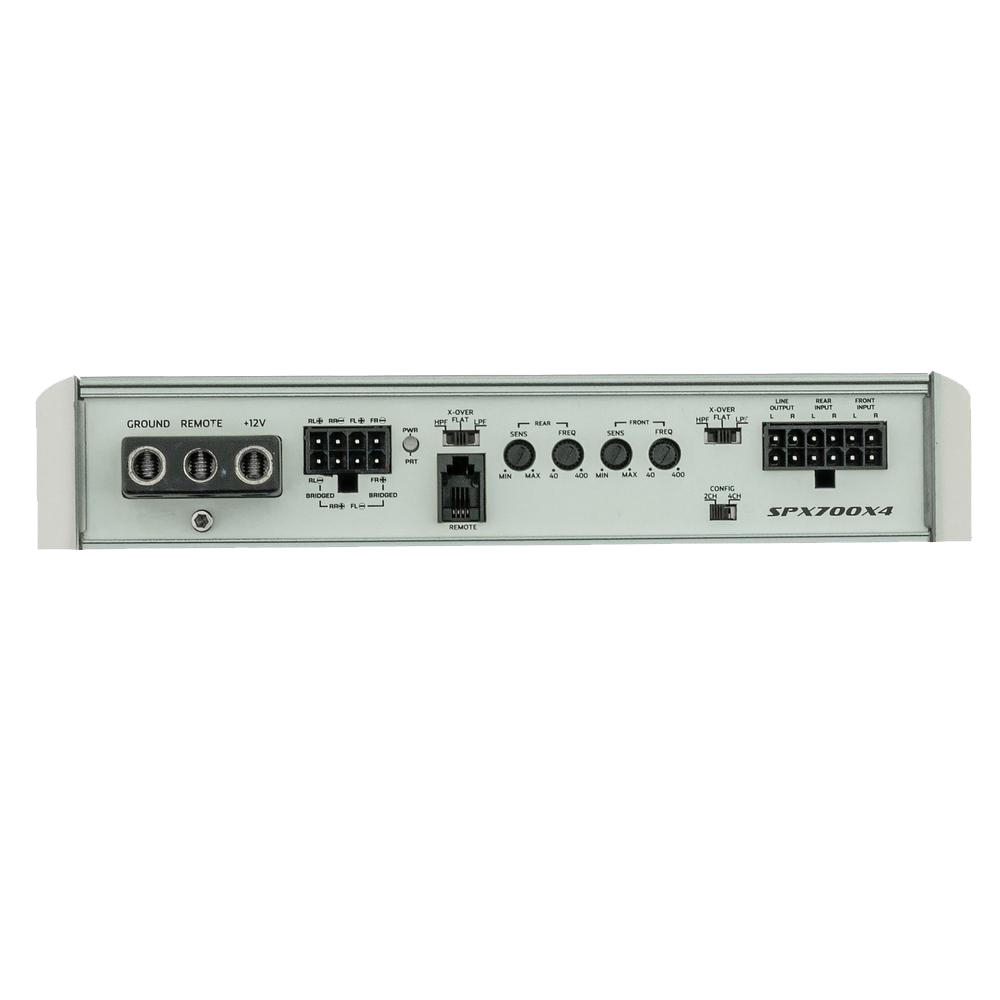

• Stinger Micro Weather-Resistant Amplifier
• User Guide

We have a 30-day easy return policy for all purchases.

We provide a shipping label for defective products upon your return request at no cost. Non-defective products will not receive a shipping label and the consumer will be responsible for all shipping costs.

Stinger products are warrantied against defects in materials One (1) Year from purchase date. Stinger will, at its discretion, replace any products that exhibit defects in materials and/or workmanship during the warranty period. Assessments of defective parts are performed before replacements are shipped or refunds are released.

Please hold on to your order confirmation! All warranty service requires original sales receipt documentation with Order Number. The warranty only applies to the original purchaser.

Note: Products purchased from unauthorized dealers are not covered under warranty.

Warranty Limitations
Units found to have physical or liquid damage caused by use abuse or improper installation may be void of warranty.
