Model Number: MT-5000.1
Number of Channels: 1
RMS Power Ratings: < 1 THD at 14.4V

• 1Ω 5000 Watts x 1 Channel
• 2Ω 3000 Watts x 1 Channel
• 4Ω 1500 Watts x 1 Channel

Input Sensitivity: 0.3 - 6.0V
Operating Voltage: 9 - 16V
Crossover Control, Linkwitz-Riley:

• SUB, Off - 50Hz (Subsonic)
• LP, 40Hz - 180Hz @ 12dB/Oct

Bass-Boost Frequency Range: 30-80 Hz
Bass-Boost Q: 0-12dB
Frequency Response (+- 3dB): 12Hz - 178Hz
Efficiency (Average): 83% Efficiency at Rated Power @ 4Ω (50Hz)
Topology Class: Class D
Remote Bass Control: Included
Power Terminals: 0 Gauge
Speaker Terminal: 8 Gauge
Required External Fusing: 250A x2

*NOTE: To ensure reliable operation of the Stinger MT5000.1, your vehicle’s electrical system must meet the following minimum specifications:

• Upgraded Alternator: 200-amp (at idle) is required.
• Big 3 Upgrade: This involves upgrading three key connections with 0-gauge wire:

1. Battery negative terminal to vehicle chassis.
2. Engine block to vehicle chassis.
3. Alternator output to battery positive terminal.

• Auxiliary Battery: An additional battery (90Ah or 1000 CCA recommended) should be installed near the amplifier.
• Wiring to Auxiliary Battery: Use two runs of 0-gauge oxygen-free copper (OFC) power and ground cables running directly to the auxiliary battery.
• Fusing: Two 250-amp fuses (one for each power wire) are required.

California Proposition 65

• To our California customers: Please view your Proposition 65 warning here.

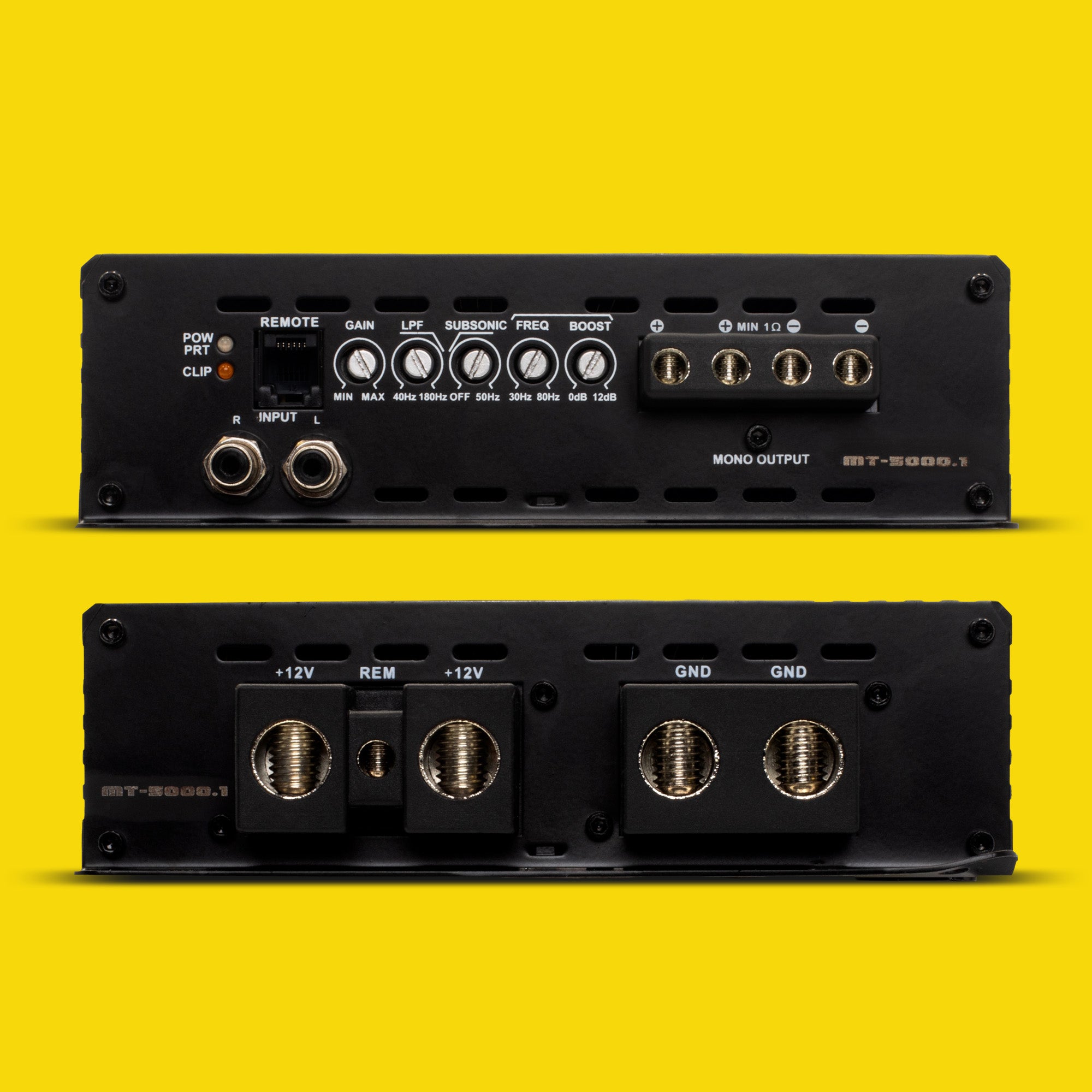

• 5,000 Watt Class D Monoblock Amplifier

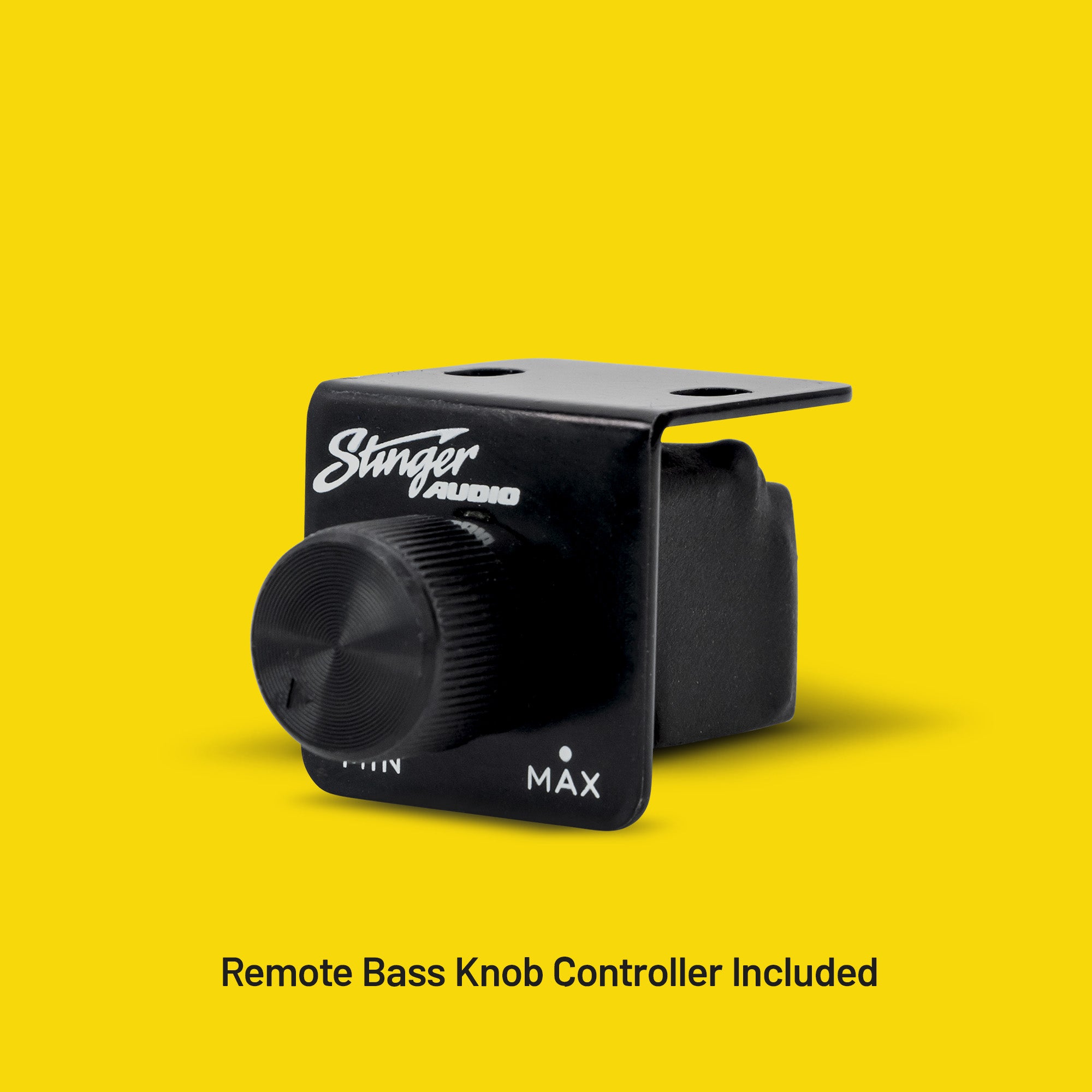

• Remote bass control, cable, and mounting bracket
• User Guide

We have a 30-day easy return policy for all purchases.

We provide a shipping label for defective products upon your return request at no cost. Non-defective products will not receive a shipping label and the consumer will be responsible for all shipping costs.

Stinger products are warrantied against defects in materials One (1) Year from purchase date. Stinger will, at its discretion, replace any products that exhibit defects in materials and/or workmanship during the warranty period. Assessments of defective parts are performed before replacements are shipped or refunds are released.

Please hold on to your order confirmation! All warranty service requires original sales receipt documentation with Order Number. The warranty only applies to the original purchaser.

Note: Products purchased from unauthorized dealers are not covered under warranty.

Warranty Limitations
Units found to have physical or liquid damage caused by use abuse or improper installation may be void of warranty.
