Loaded Subwoofer Enclosure
Number of Channels: 1
4Ω: CH 1 350W x 1
2Ω: CH 1 520W x 1
1Ω: CH 1 800W x 1
Total RMS Power (Sum of rated power): 800W
Bridgeable: NO
Crossover Mode: LP
CH 1 50Hz - 250Hz @ 12dB / Oct Linkwitz Riley
Subsonic 10Hz - 55Hz @ 12dB / Oct Linkwitz Riley
Input Channels: 2CH L/R
Input Mode: Switchable Unbalanced / Balanced
Input Sensitivity: .2v - 5v Unbalanced RCA Low-Level
.5v - 10v Balanced RCA Hi-Level
Processing: Bass Boost 0 - +18dB @45hz
Variable Phase 0 - 180 Degrees
Output Channels: Pass Through from Input Signal
Signal to Noise (@ CEA Standard): >90dB
Frequency Response: Full Range CH 1 15Hz - 250Hz
Topology Class: D
Heatsink Type: Extruded Aluminum
Cooling Type: Radiation
Operating Voltage: 8V to 16V
Switchable Auto-Turn On: No
Power Supply Type: Unregulated
Power Terminals: 4 Gauge
Speaker Terminal: 10 Gauge
On-Board Fusing: 3 x 30A ATC
Recommended Inline Fuse: 80A
Dimensions (L x W x H): 10.16” x 5.91” x 1.91” - 258mm x 150mm x 48.5mm

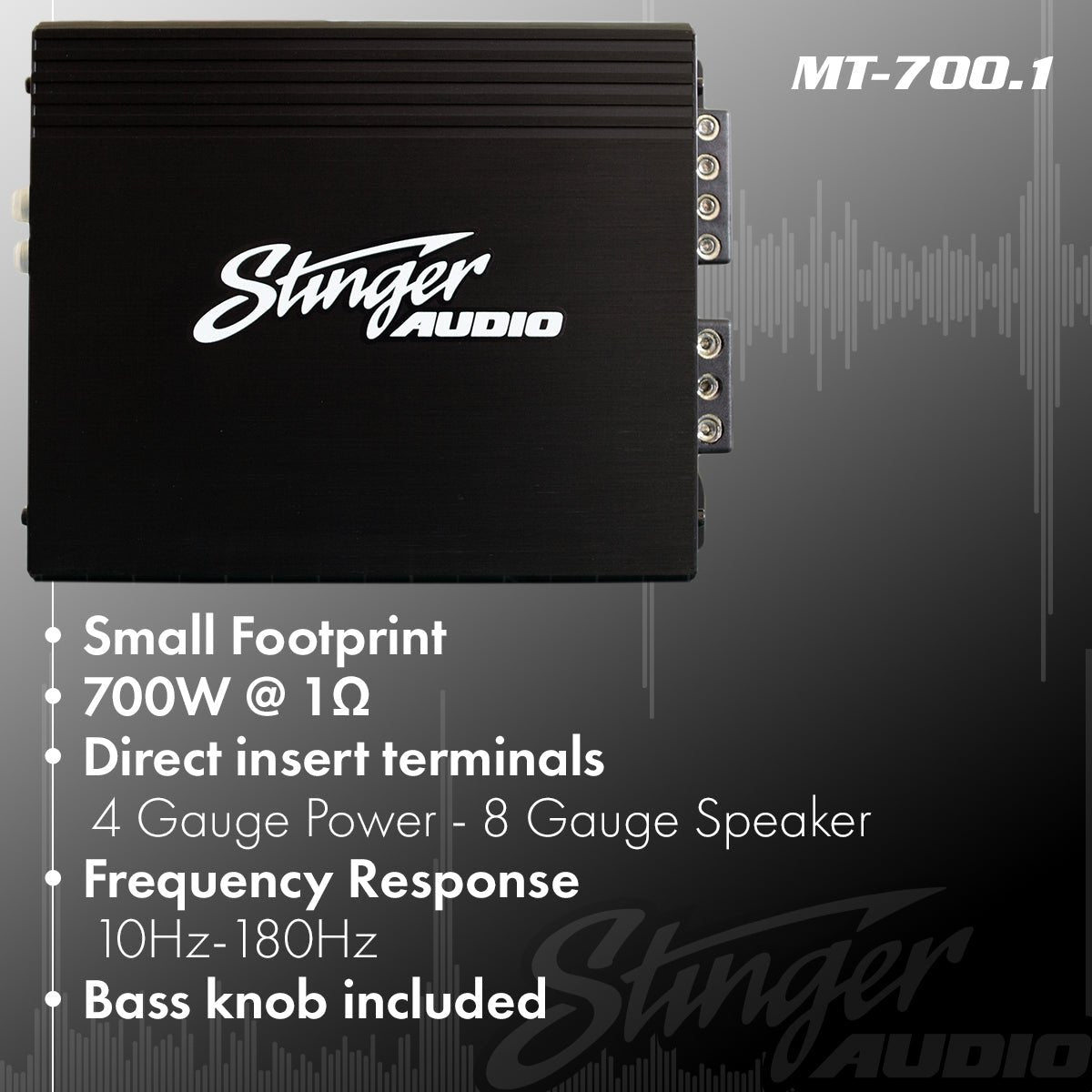

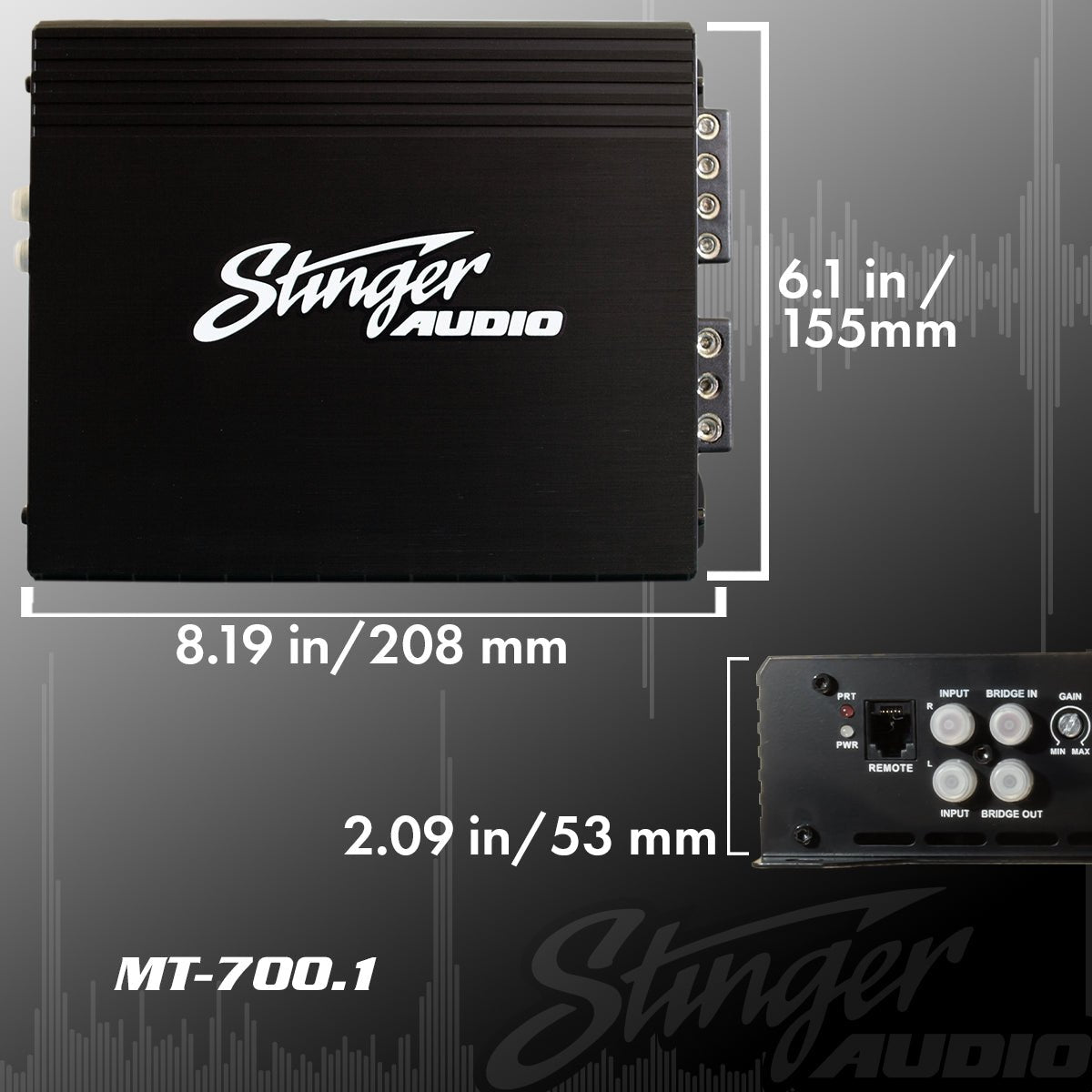

700W Monoblock Amplifier
Number of Channels:

1

1Ω:

700 Watts x 1 Channel

2Ω:

500 Watts x 1 Channel

4Ω

300 Watts x 1 Channel

Bridged RMS Rating / 2Ω Minimum

1200W x 1

Signal to Noise (@ CEA Standard)

-93db

Input Sensitivity 0.2-6v

0.2-6v

Gain

0.2v - 6v

Crossover Control, Linkwitz-Riley

SUB 0Hz - 50Hz (Subsonic)

LP 40Hz - 180Hz @ 12dB/Oct

Bass-Boost Frequency Range

30-80 Hz

Bass-Boost Q

0-12dB

Frequency Response (+- 1dB)

10Hz - 180Hz

Efficiency (Average)

85%

Topology Class:

Class D

Remote Bass Control

Included

Operating Voltage

9V to 16V

Power Terminals:

4 Gauge

Speaker Terminal:

8 Gauge

Recommended External Fusing

80A

HEXFET® is a registered trademarks of International Rectifier Corporation.

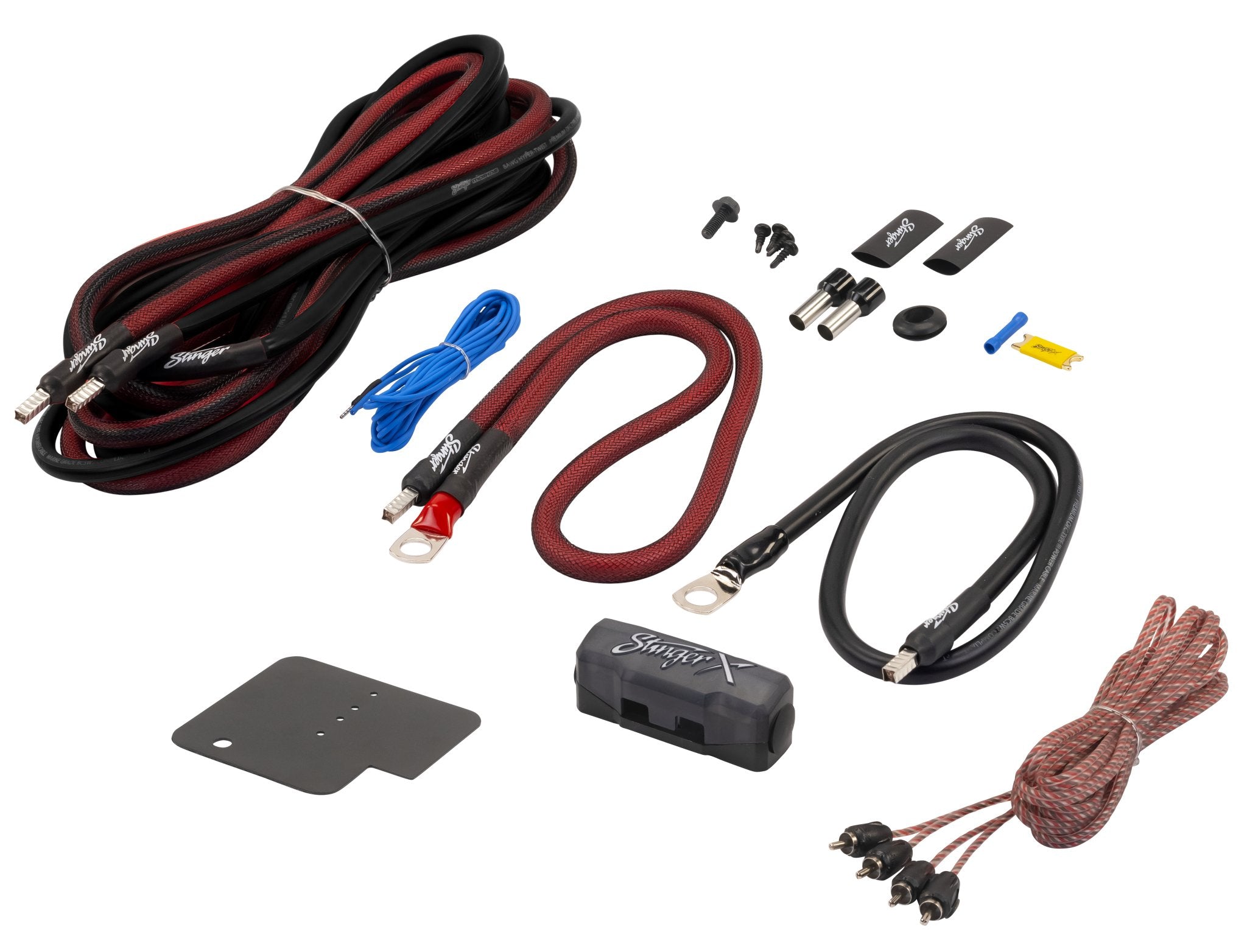

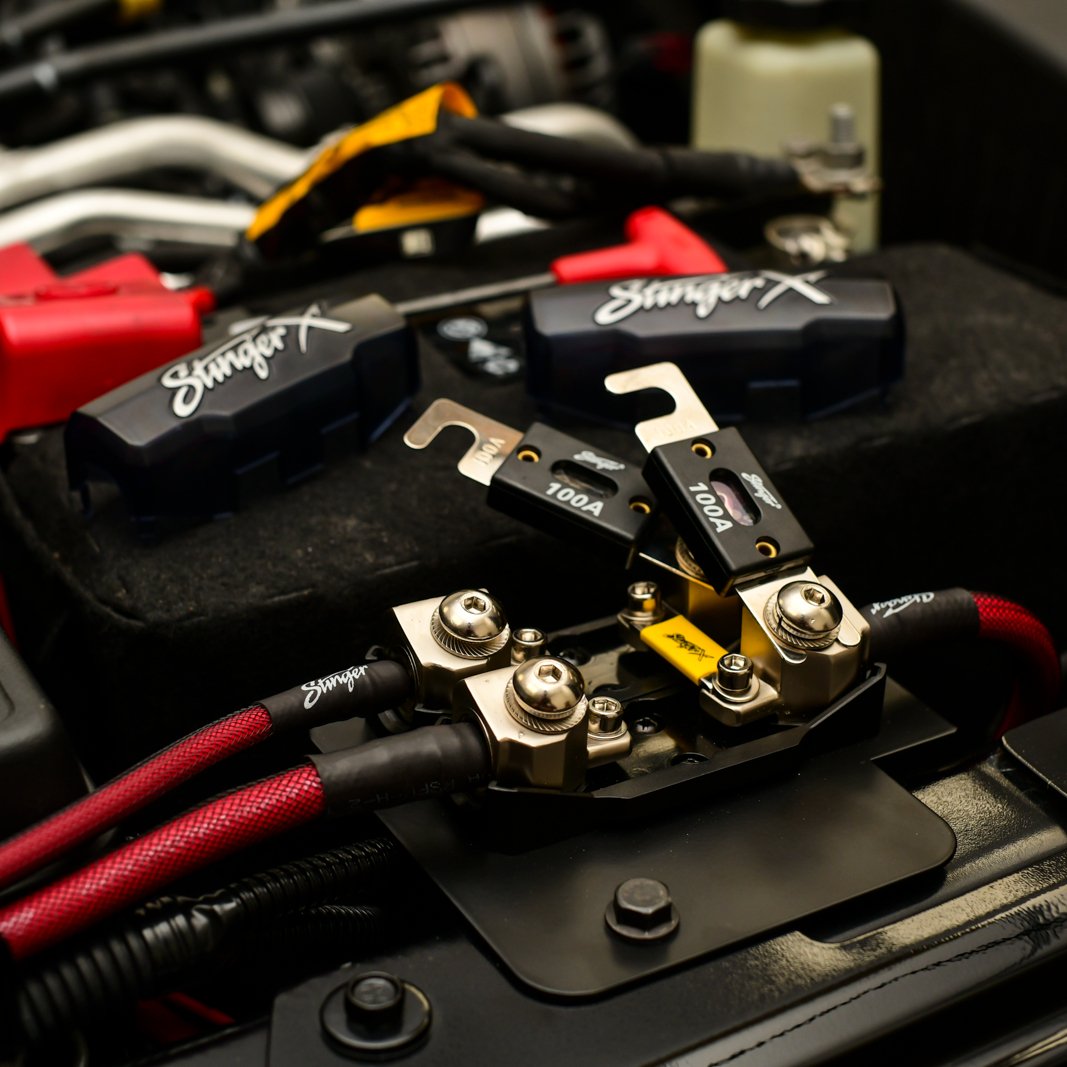

4GA Wiring Kit
Vehicle Fitment Jeep Wrangler Unlimited 4-Door (2007-2022)
Jeep Gladiator JT (2020-2022)
Placement Driver's Seat
High Current OFC Copper 4 Gauge
Directional Twisted-Pair RCA Cable 2 channel 4000 series
Element-ready jacket for extreme environments
Pre-cut, terminated, and loomed wire
Expandable X-Link fuse holder with custom mounting bracket
Wire ferrules, remote turn-on wire, and hardware pack included

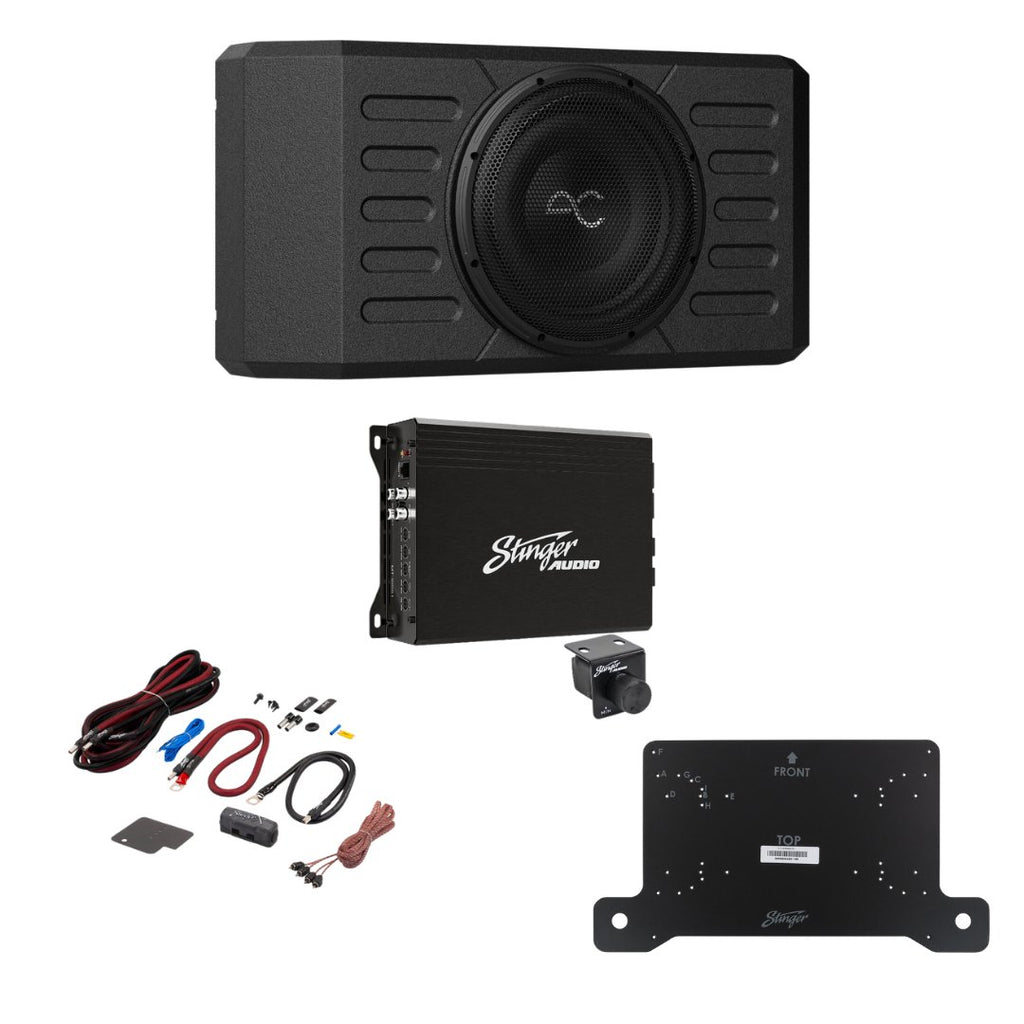

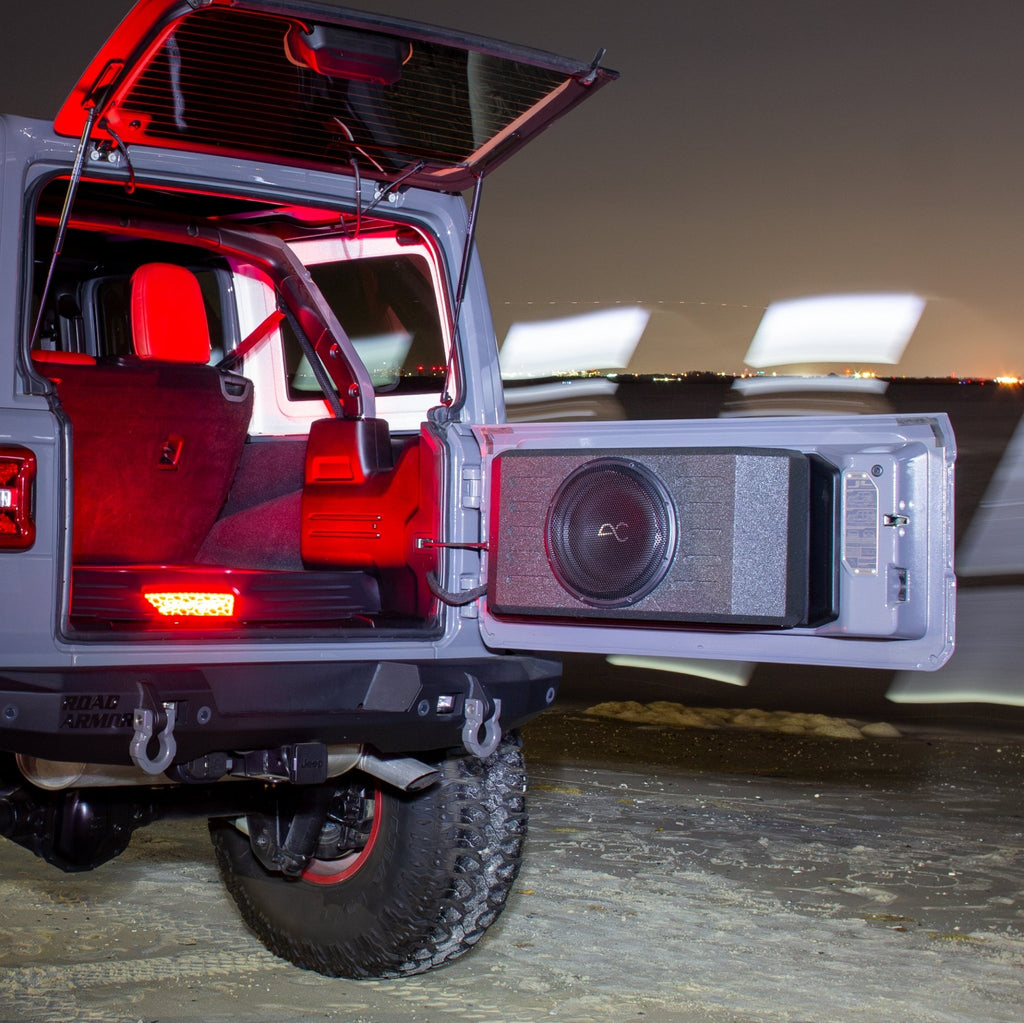

• Swing gate-mount 12" 400 watt subwoofer loaded enclosure for Jeep Wrangler JLU (TXJWB12)
• 700 Watt Class D Monoblock Car Audio Amplifier (MT-700.1)
• Jeep Wrangler 4GA wiring kit w/ 12ft 2 channel RCA cable (STXKJW4)

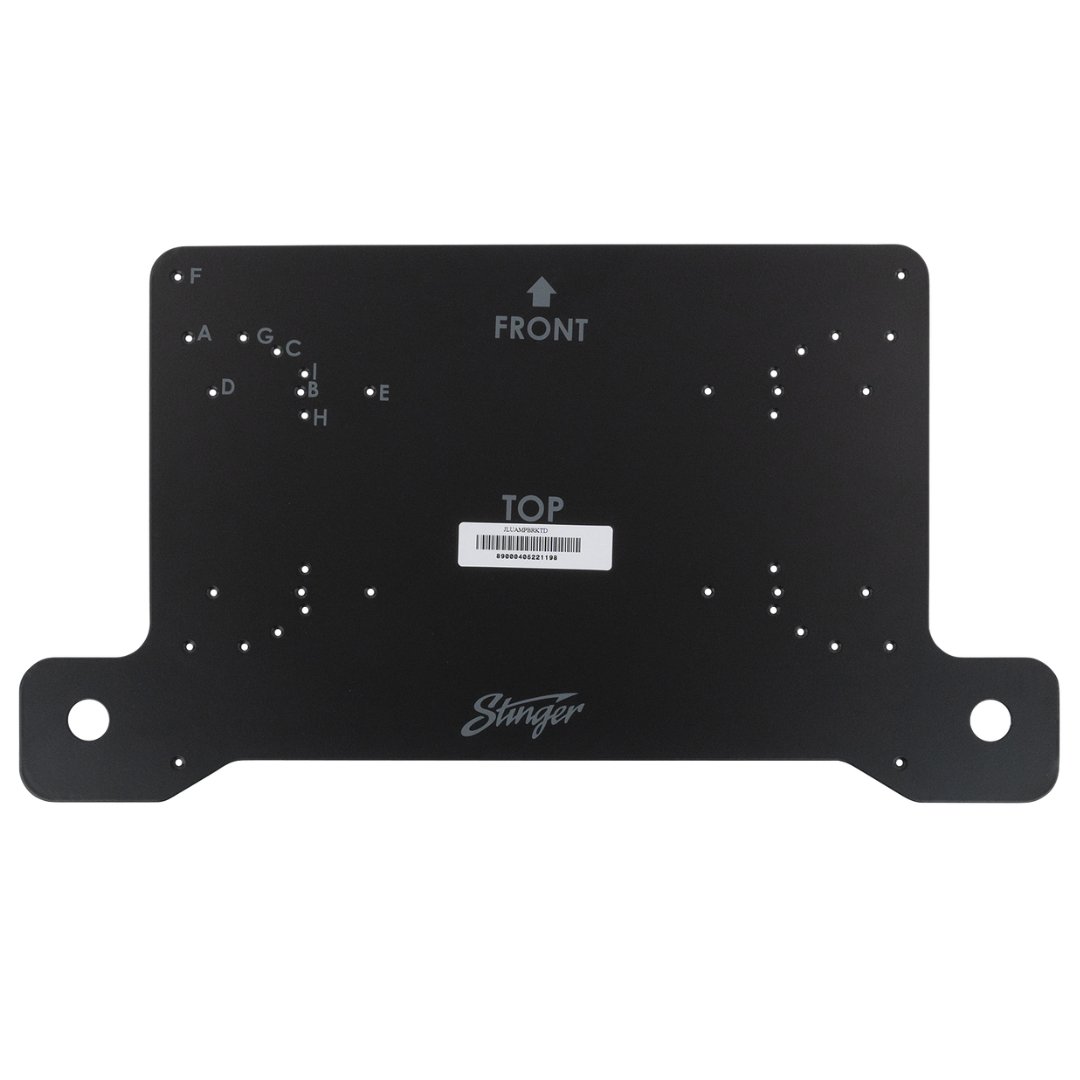

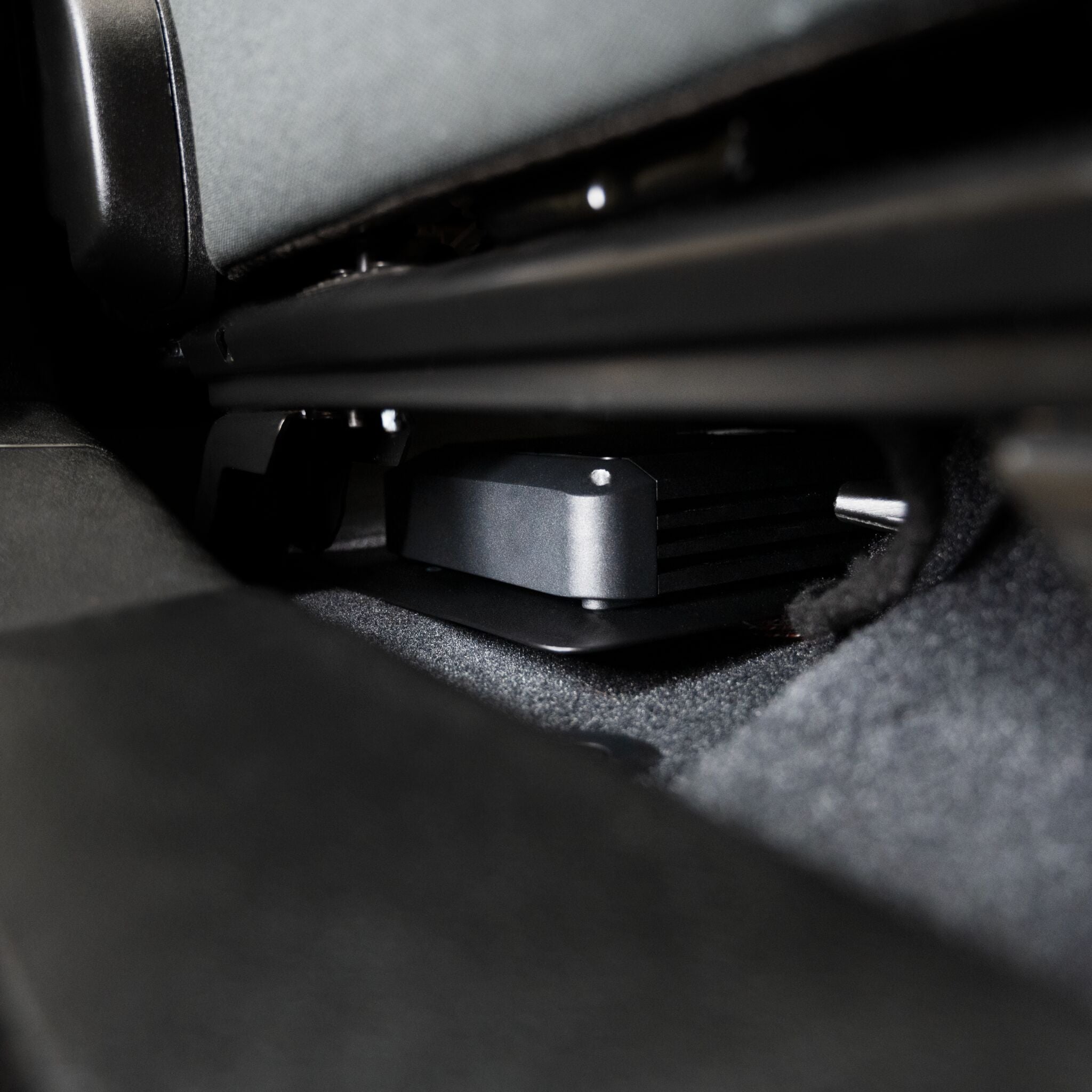

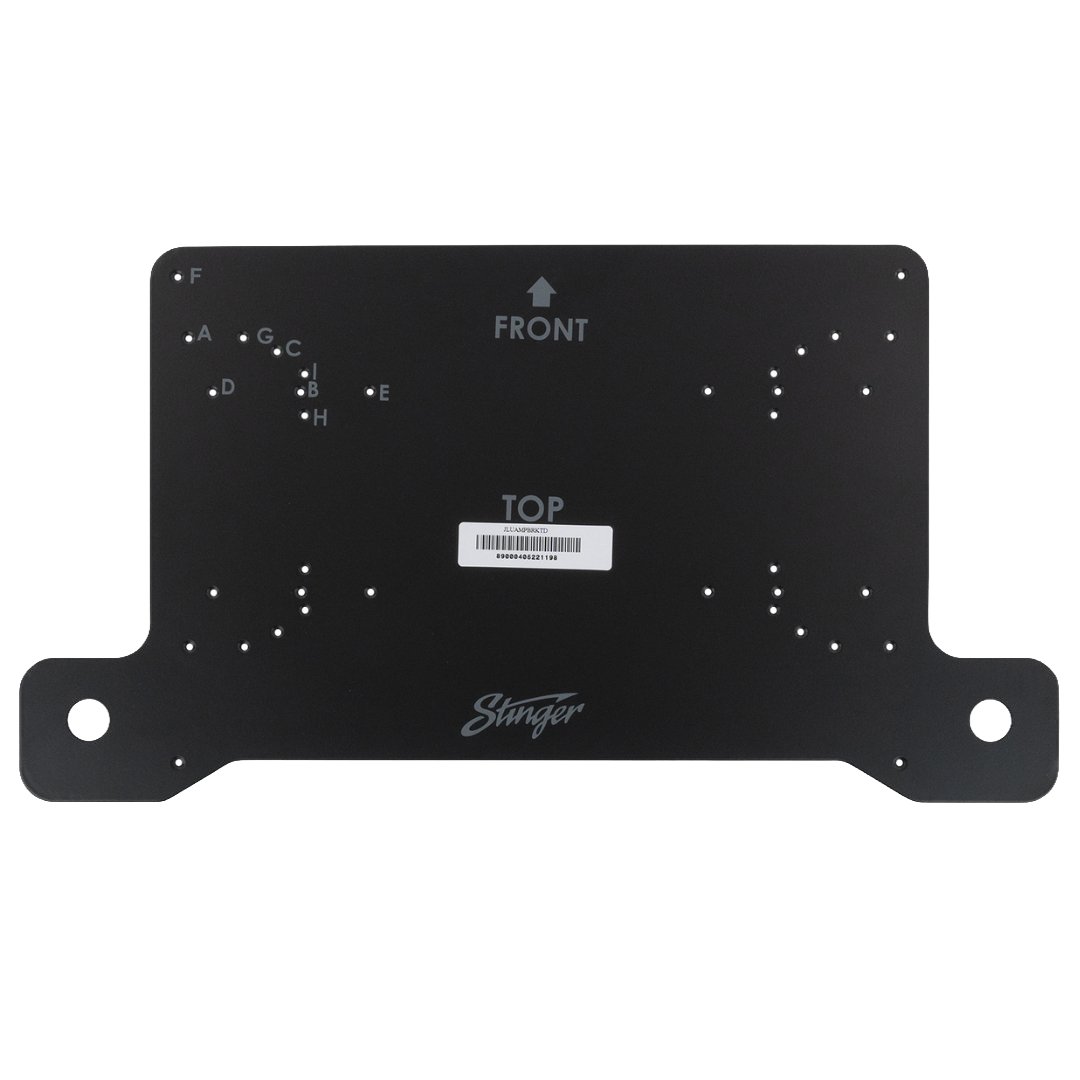

• Jeep Wrangler JL Unlimited amplifier mounting system (JLUAMPBRKTD)
• 15ft of 14GA speaker wire

We have a 30-day easy return policy for all purchases.

We provide a shipping label for defective products upon your return request at no cost. Non-defective products will not receive a shipping label and the consumer will be responsible for all shipping costs.

Stinger products are warrantied against defects in materials One (1) Year from purchase date. Stinger will, at its discretion, replace any products that exhibit defects in materials and/or workmanship during the warranty period. Assessments of defective parts are performed before replacements are shipped or refunds are released.

Please hold on to your order confirmation! All warranty service requires original sales receipt documentation with Order Number. The warranty only applies to the original purchaser.

Note: Products purchased from unauthorized dealers are not covered under warranty.

Warranty Limitations
Units found to have physical or liquid damage caused by use abuse or improper installation may be void of warranty.

2018-2023+ JEEP WRANGLER JL
ALL TRIM LEVELS
2-DOOR

2018-2023+ JEEP WRANGLER JL
ALL TRIM LEVELS
4-DOOR
