Sensor Type 1/3” CMOS
LEDs 0
Illumination 0.5 LUX
Viewing Angle 170º
Mirror Image YES
Normal Image NO
Water/Debris-Proof IP67

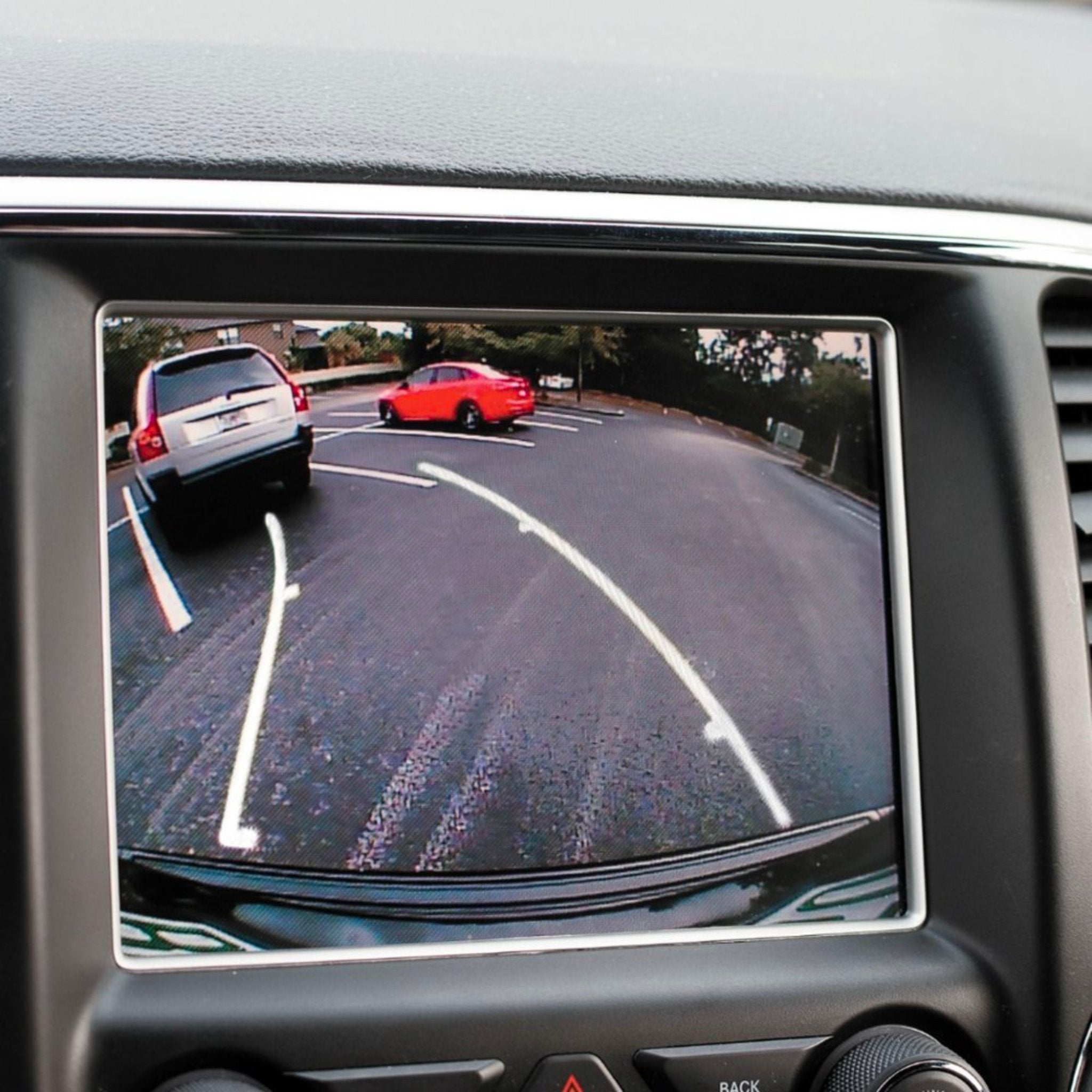

Parking Lines Selectable
Audio NO
Power Supply 12V DC
Current <180mA
Working Temperature -4°F -+158°F/-20°C -+70°C
Dimensions (mm) D (24.8/0.93) x W (23.5/0.93)x H (23.5/0.93)
Dynamic Guidance Trajectory Embedded
AGC Auto
BLC Auto
System NTSC
TV Lines 600
Part Number BBY-CAM-TGL
Resolution 762x504

• Backup Camera

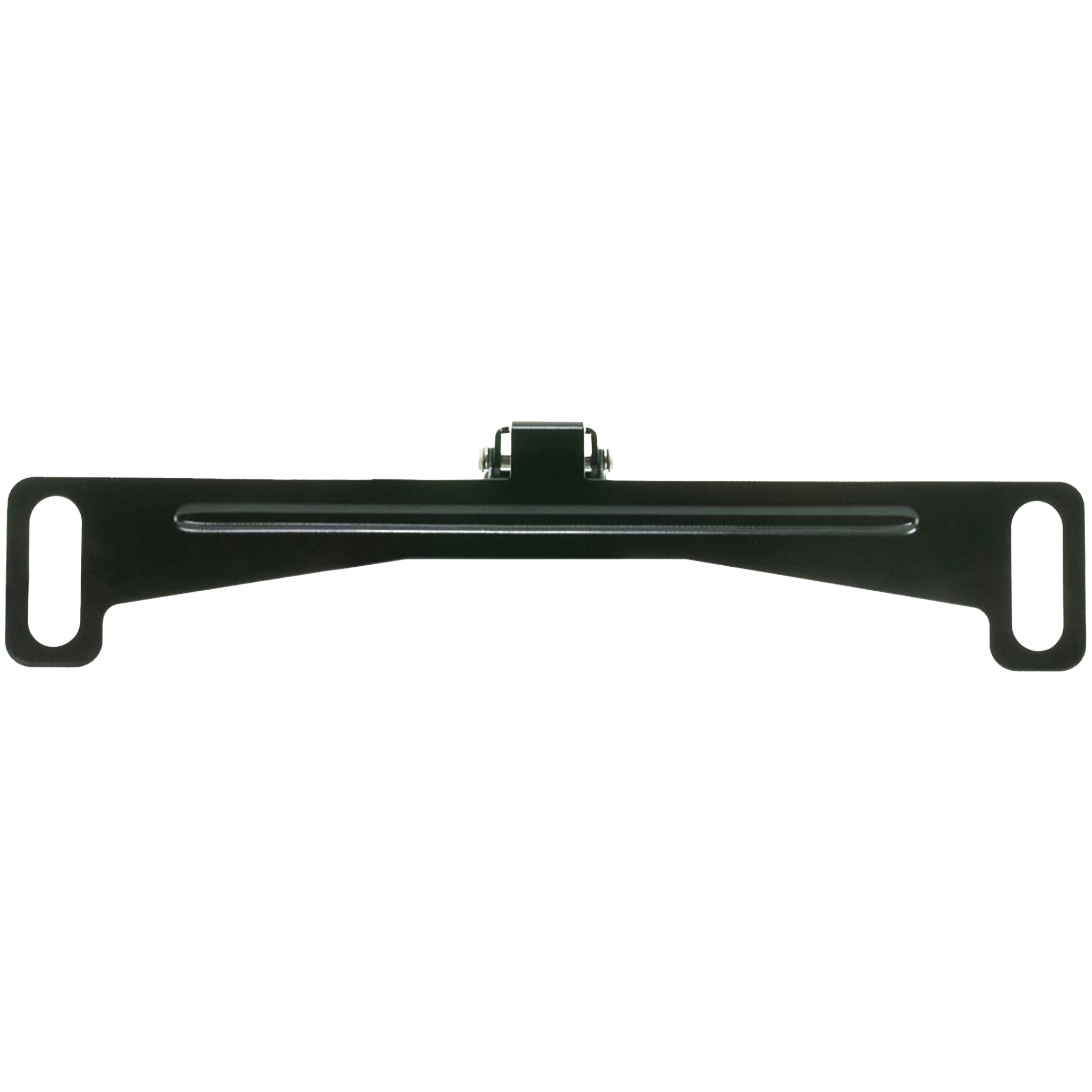

• License Plate Bracket
• Installation Hardware
• Wiring Harness (39”)
• RCA Cable (20’)
• User Guide

We have a 30-day easy return policy for all purchases.

We provide a shipping label for defective products upon your return request at no cost. Non-defective products will not receive a shipping label and the consumer will be responsible for all shipping costs.

Stinger products are warrantied against defects in materials One (1) Year from purchase date. Stinger will, at its discretion, replace any products that exhibit defects in materials and/or workmanship during the warranty period. Assessments of defective parts are performed before replacements are shipped or refunds are released.

Please hold on to your order confirmation! All warranty service requires original sales receipt documentation with Order Number. The warranty only applies to the original purchaser.

Note: Products purchased from unauthorized dealers are not covered under warranty.

Warranty Limitations
Units found to have physical or liquid damage caused by use abuse or improper installation may be void of warranty.
